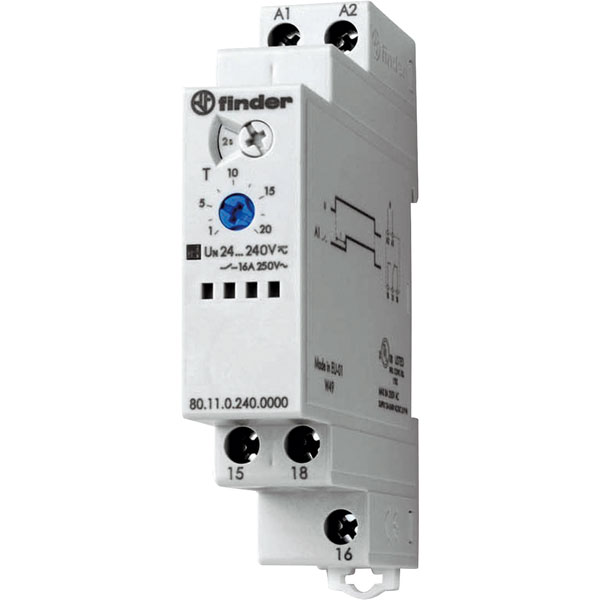

The Finder 80.11.0.240.0000 Multi Voltage / Mono Function Timer is from the 80 Series. This high input/ output isolation modular timer is 17.5mm width and 35mm DIN rail mountable. It has six time scales from 0.1 second to 24 hour. This flexibility of operation means that specification is simplified and inventory levels can be kept to a minimum.
The On Delay (AI) timer has a contact configuration of 1 CO (SPDT). Rated at 16/30A and with a flexible voltage range of 24 to 240V AC means that specification is simplified and inventory levels can be kept to a minimum.
Both flat blade and cross head screw drivers can be used to adjust the function selector, the timing trimmer, and to disengage the 35mm rail mounting clip.
- Monofunction, multivoltage
- 17.5mm wide
- Six time scales from 0.1s to 24h
- High input/output isolation
- 35mm DIN rail (EN 60715) mount
- Contact material: AgCdO
- Contact type: SPDT-CO
- Dimensions: 60.8(H) x 17.5(W)mm
- Operating voltage: 24 - 240V DC/AC
- Product Specifications: Readiness duration: 50ms
- Protection type: IP20
- Specification: Timer relay switch on delay
- Switching capacity: (AC1) Max 4000VA, at 16A contact AC 15 (230V/AC) 750 VA, Engine load at 16A contact (1-Phase motor AC3-operation - 230 V/AC) 0,55kW
- Switching current: 16A
- Switching voltage: 400V AC
- Temperature range: -10°C to +50°C
- Time range(s): 6 time domains upto 20 hrs
- Timer functions: Switch-on delay
- Manufacturer's part: Finder 80.11.0.240.0000
| Clock function, starting with pause, variable |
false |
| Clock function, starting with pulse, variable |
false |
| Depth |
56.5mm |
| Dimensions |
60.8(H) x 17.5(W)mm |
| Display |
LCD |
| EF003360 |
false |
| Function delay on de-energization |
false |
| Function delay-on energization |
true |
| Function flashing, starting with pause, fixed time |
false |
| Function flashing, starting with pulse, fixed time |
false |
| Function floating contact on de-energization |
false |
| Function floating contact on energization |
false |
| Function pulse shaping |
N/A |
| Function star-delta |
false |
| Height |
84mm |
| Nominal Current |
16A |
| Number of outputs, delayed, change-over contact |
1 |
| Number of outputs, delayed, normally closed contact |
0 |
| Number of outputs, delayed, normally open contact |
0 |
| Number of outputs, undelayed, change-over contact |
N/A |
| Number of outputs, undelayed, normally closed contact |
N/A |
| Number of outputs, undelayed, normally open contact |
N/A |
| Operating Voltage |
250V |
| Outputs |
Relay |
| Outputs, reversible delayed/undelayed |
N/A |
| Pluggable on auxiliary contact block |
N/A |
| Rated control supply voltage AC 50 Hz |
240 - 240V |
| Rated control supply voltage AC 60 Hz |
240 - 240V |
| Rated control supply voltage DC |
240 - 240V |
| Remote operation possible |
false |
| Suitable as remote control |
false |
| Suitable for DIN rail (top hat rail) mounting |
true |
| Suitable for front mounting |
true |
| Temperature Range |
-10°C to +50°C |
| Time range |
0.1 - 86400s |
| Type of electric connection |
Screw connection |
| Voltage type for actuating |
AC/DC |
| Width |
17.5mm |
| With semiconductor output |
true |
