Gossen Metrawatt Metrahit Starline Digital Multimeters

Gossen Metrawatt Brand: Gossen Metrawatt

The new Gossen Metrawatt METRAHIT multimeters from the STARLINE generation are robust, reliable digital multimeters with housings made of impact-resistant plastic. The devices are distinguished by their exemplary design of 3 sockets with automatic blocking (ABS), TRMS measurement of alternating and pulsating current to 30KHz, temperature measurement using K-type thermocouples and an illuminated display with large digits. The range consists of four models with varying specifications to suit the user's requirements and budget. Please see the technical specification for the details of each unit. All the meters are supplied with a KS17-2 test cable set, 2 x AA batteries, condensed operating instructions, CD-ROM with full operating iinstructions and the DAkkS calibration certificate. The X-TRA model (54-7214) is also supplied with a protective rubber cover.

  • Direct AC/DC current measurement
  • Switch-1KHz/-3 dB lowpass filter
  • TrueRMS bandwidth 20KHz
  • 15000 sample memory with internal clock
  • Bidirectional infrared interface
  • Power adaptor jack
  • IP52 rated
Description Image Product Buy Pricing (Ex VAT) Frequency Max. AC Voltage Max. DC Voltage Max. Display Count No. of Digits Resistance Max

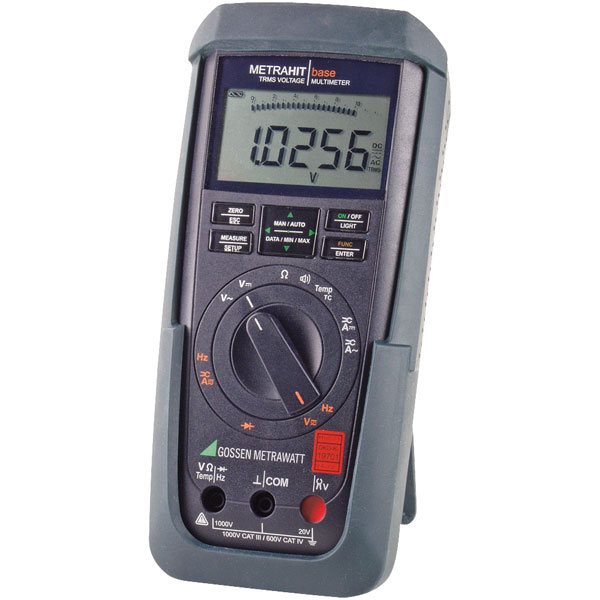

Gossen Metrawatt M241A METRAHIT BASE Multimeter 12000 counts CAT IV 600 V
Gossen Metrawatt M241A METRAHIT BASE Multimeter 12000 counts CAT IV 600 V
Standard range
Order code: 54-7212
MPN: M241A

1 in stock, despatched in 4 working days
1+ £407.43
Price per unit Ex VAT 		0.00003GHz 1000V 1000V 12000 N/A 40000000Ω
Gossen Metrawatt M242A METRAHIT PRO Digital Multimeter 12000 counts CAT IV 600 V
Gossen Metrawatt M242A METRAHIT PRO Digital Multimeter 12000 counts CAT IV 600 V
Standard range
Order code: 54-7213
MPN: M242A

7 in stock, despatched in 4 working days
1+ £531.58
Price per unit Ex VAT 		0.00003GHz 1000V 1000V 12000 N/A 40000000Ω
Gossen Metrawatt M240A METRAHIT X-TRA Multimeter 12000 counts CAT IV 600 V
Gossen Metrawatt M240A METRAHIT X-TRA Multimeter 12000 counts CAT IV 600 V
Standard range
Order code: 54-7214
MPN: M240A

40 in stock, despatched in 4 working days
1+ £682.42
Price per unit Ex VAT 		0.001GHz 1000V 1000V 12000 N/A 40000000Ω
Gossen Metrawatt M243A METRAHIT TECH Multimeter 12000 counts CAT IV 600 V
Gossen Metrawatt M243A METRAHIT TECH Multimeter 12000 counts CAT IV 600 V
Standard range
Order code: 54-7215
MPN: M243A

2 in stock, despatched in 4 working days
1+ £561.59
Price per unit Ex VAT 		0.0001GHz 1000V 1000V 12000 N/A 40000000Ω
Order code 54-721254-721354-721454-7215
Mftrs. part no. BASE PRO X-TRA TECH
Display 12000 counts 12000 counts 12000 counts 12000 counts
DC voltage range 10µV to 1000V 10µV to 1000V 10µV to 1000V 10µV to 1000V
AC voltage range 100mV to 1000V 100mV to 1000V 100mV to 1000V 10µV to 1000V
DC current range Current clamp100µA to 10A 10nA to 10A 1µA to 10A
AC currrent range Current clamp100µA to 10A 10nA to 10A 1µA to 10A
Resistance range 10mΩ to 40MΩ 10mΩ to 40MΩ 10mΩ to 40MΩ 10mΩ to 40MΩ
Frequency range 0.01Hz to 30KHz 0.01Hz to 30KHz 0.01Hz to 1MHz 0.01Hz to 100KHz
Temperature range K-type -50 to +1372°C -50 to +1372°C -50 to +1372°C -50 to +1372°C
Pt100 -200 to +850°C
Capacitance range 10pF to 1000µF 10pF to 1000µF
CAT IV 600 V CAT IV 600 V CAT IV 600 V CAT IV 600 V
Basic accuracy ± 0.05% + 3 digits ± 0.05% + 3 digits ± 0.05% + 3 digits ± 0.05% + 3 digits
Interfaces optical
Power supply 2 AA batteries 2 AA batteries 2 AA batteries 2 AA batteries
Weight 350g 350g 350g 350 g
ISO/DKD calibration y y y y
Width x height (mm) 87 x 200 87 x 200 87 x 200 87 x 200
