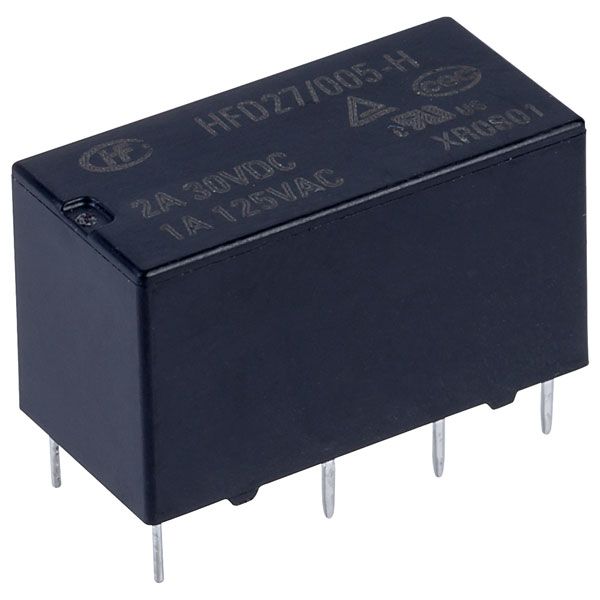

Hongfa HFD27/005-H PCB Signal Relay 5VDC DPDT 2A

Name: Hongfa HFD27/005-H PCB Signal Relay 5VDC DPDT 2A
Brand: Hongfa
Price: 0.990 GBP
Availability: InStock

Standard range

Order Code:

71-4718

Brand: Hongfa MPN: HFD27/005-H

RoHS Compliant
Country of Origin: China
Free UK shipping available
View Full Product Range (2)

Inc VAT

Qty	Was	Unit Price (Ex VAT)
1+	£1.02	£0.990

Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT

186 in stock, despatched same dayAdditional quantity lead time 7 days

Product Details
Product Range
Data Sheets
Quick Quote

A 2A subminiature relay from the HFD27 series that comes in a DIL-16 package. The relay has 5V DC coil and a DPDT contact configuration. Features a 150mW high sensitivity coil and a case that is epoxy sealed for automatic wave soldering and cleaning.

High switching capacity
Bifurcated contacts
20.2 x 10.0 x 11.5mm

Coil Power	150mW
Coil Resistance	167Ω
Coil Type	High Sensitivity
Coil Voltage	5V
Contact Configuration	DPDT
Height	11.5mm
Length	20.2mm
Mounting Type	DIL
Operating Temperature	-40 to +85°C
Switching Power	125VA
Switching Voltage Max (AC)	240V
Switching Voltage Max (DC)	120V
Width	10mm
