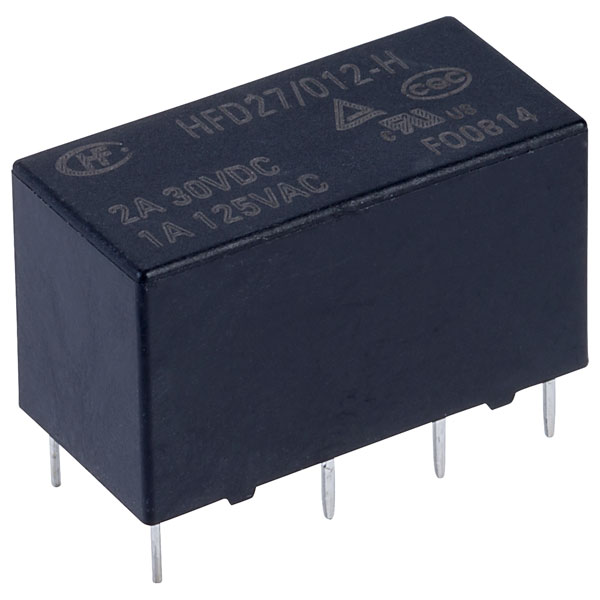

Hongfa HFD27/012-H PCB Signal Relay 12DC DPDT 2A

Name: Hongfa HFD27/012-H PCB Signal Relay 12DC DPDT 2A
Brand: Hongfa
Price: 1.01 GBP
Availability: OutOfStock

Standard range

Order Code:

71-4719

Brand: Hongfa MPN: HFD27/012-H

RoHS Compliant
Country of Origin: China
Free UK shipping available
View Full Product Range (2)

Inc VAT

Qty	Unit Price (Ex VAT)
1+	£1.01

Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT

Out of stock100 due on 03/06/2025

Product Details
Product Range
Data Sheets
Quick Quote

A 2A subminiature relay from the HFD27 series that comes in a DIL-16 package. The relay has 12V DC coil and a DPDT contact configuration. Features a 150mW high sensitivity coil and a case that is epoxy sealed for automatic wave soldering and cleaning.

High switching capacity
Bifurcated contacts
20.2 x 10.0 x 11.5mm

Coil Power	150mW
Coil Resistance	960Ω
Coil Type	High Sensitivity
Coil Voltage	12V
Contact Configuration	DPDT
Height	11.5mm
Length	20.2mm
Mounting Type	DIL
Operating Temperature	-40 to +85°C
Switching Power	125VA
Switching Voltage Max (AC)	240V
Switching Voltage Max (DC)	120V
Width	10mm
