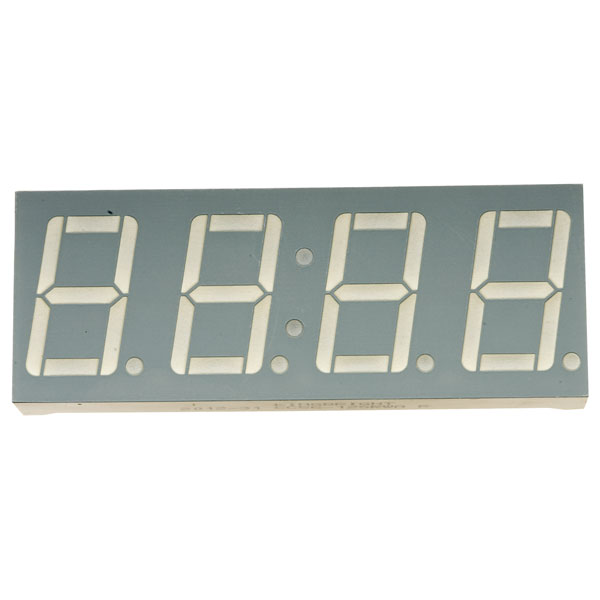

Kingbright CC56-12SRWA 4 Digit Red LED Display

Kingbright
Order Code:

57-0268

Brand: Kingbright MPN: CC56-12SRWA

Discontinued


High quality quad digit super bright red LED display from Kingbright that are available in a variety of colours and with either a floating decimal point or a fixed decimal point/colon. These devices are ideally suited to applications that require readouts of time or varying integers.


  • 7 Segment 14.2mm (0.56in) high characters
  • Floating point gives readout from 0000 and 0.001 to 9999
  • Common cathode
  • White segments with grey display surface maximises on/off contrast
  • Connections run along top and bottom of display
  • Kingbright 56 series

Rapid Electronics are Kingbright''s leading UK distributor of LEDs. To find out more about the full range of Kingbright products please visit Rapid''s Kingbright page.


Colour Red
Common Connection Common cathode
Digit / Alpha Height 0.56in
Forward Current 30mA
Forward Voltage 1.85V
Luminous Intensity 24mcd

Questions

*Question functionality currently disabled
Friday, November 22, 2013 | Question by: Rapid Customer | Product code: 57-0268
Q. The datasheet for this component doesn't fully explain how to drive it. How do you drive this display?
A. Hi Adam. Thank you for your question. The displays with more than one digit within the same block are intended to be driven in a multiplexed mode. You would need a microcontroller to drive this display. Multiplexing reduces the number of control lines.
