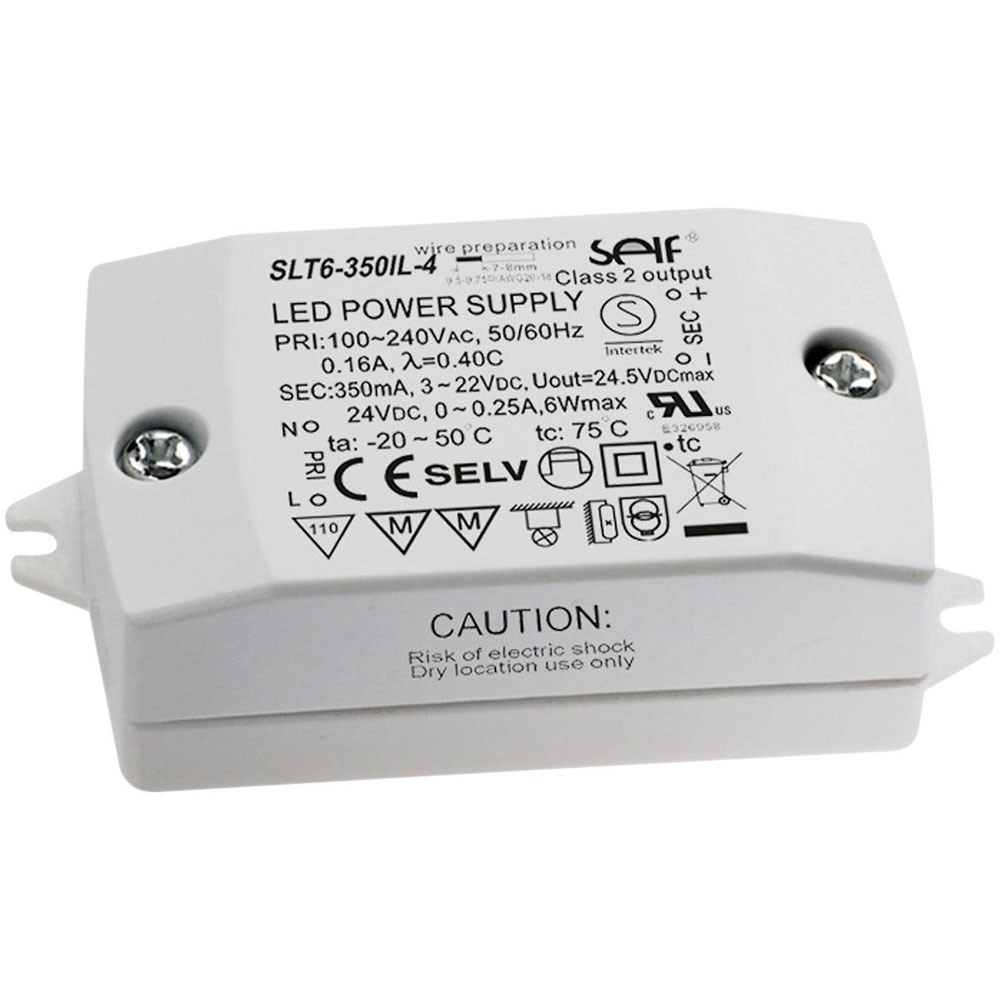

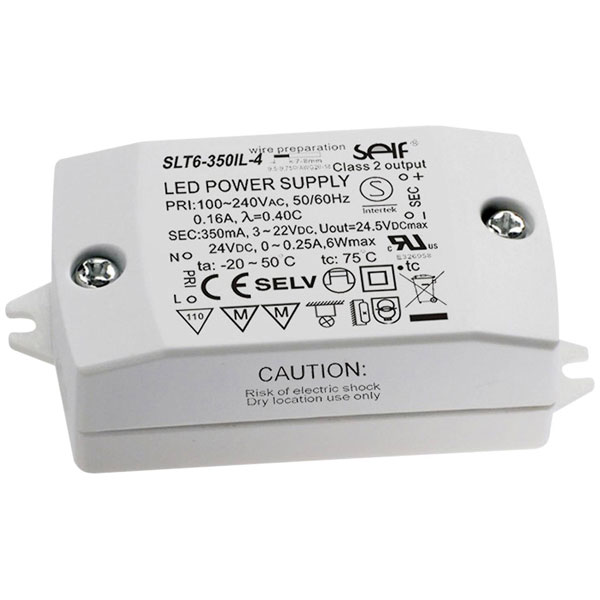

Self Electronics SLT6-350IL-4 LED Driver 7.7W 350mA 3-22V DC PFC & Surge Protect

Self Electronics
Order Code:

10-5715

Brand: Self Electronics MPN: SLT6-350IL-4 EAN-13: 4021087039185
Qty Unit Price (Ex VAT)
1+ £8.87
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
55 in stock, despatched in 4 working days

The Self Electronics SLT6-350IL-4 LED driver provides a constant current of 350 mA with a power rating of 7.7 W and is suitable for use on flammable surfaces. It features a power factor correction circuit, surge protection, and overvoltage protection. This LED driver is typically used for powering LED strips and other LED lighting applications.
Type LED driver
Connection Screw terminal
Dim (L x W x H) 68 x 35 x 21 mm
Factory colour White
Height 21mm
Input voltage (max.) 264V AC
IP rating IP20
Length 68mm
Max. output current 350mA
Max. power 7.7W
Max. temperature 50°C
Min. input voltage 90V AC
Min. temperature -20°C
Misc Attribute Constant current
No. of inputs 1
No. of outputs 1
Operating current 160mA
Output current (max.) - rounded 350mA
Output voltage (max.) 22V DC
Output voltage (min.) 3V DC
Power range 7.7 W (max)
Protection class II
Width 35mm
