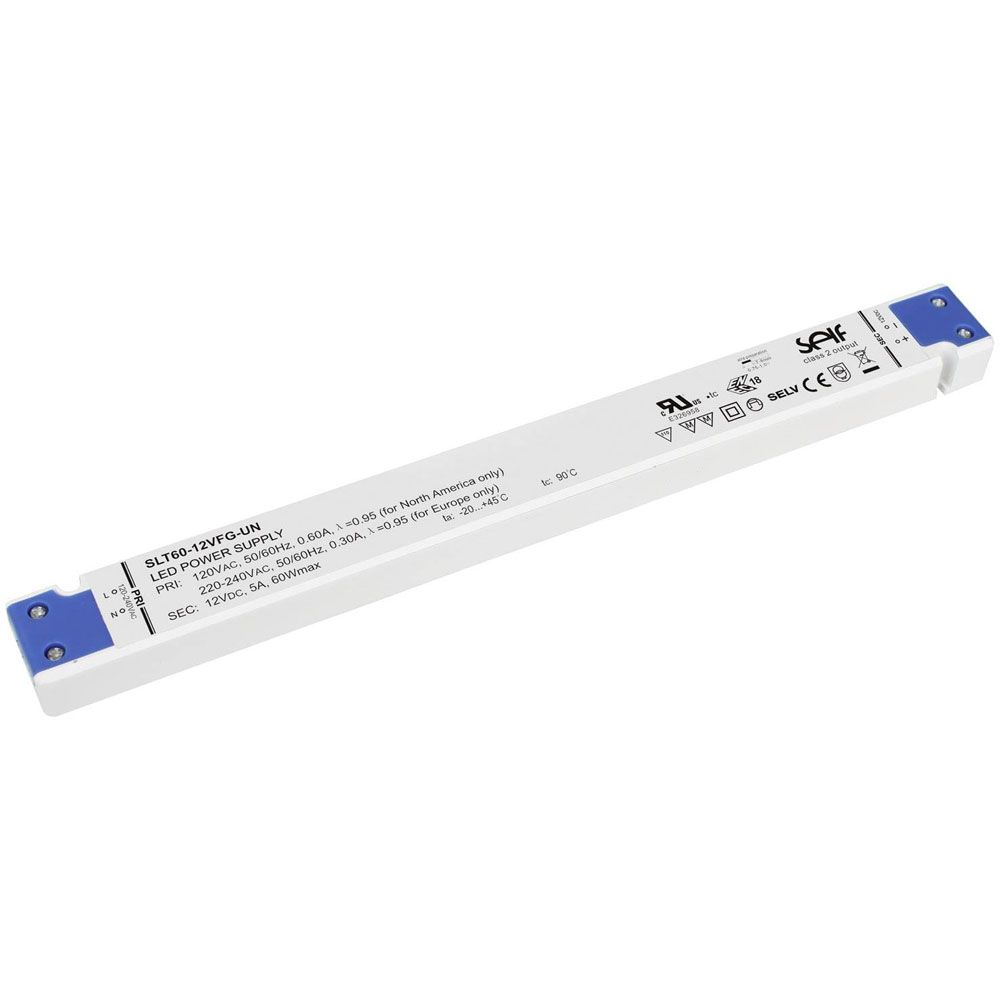

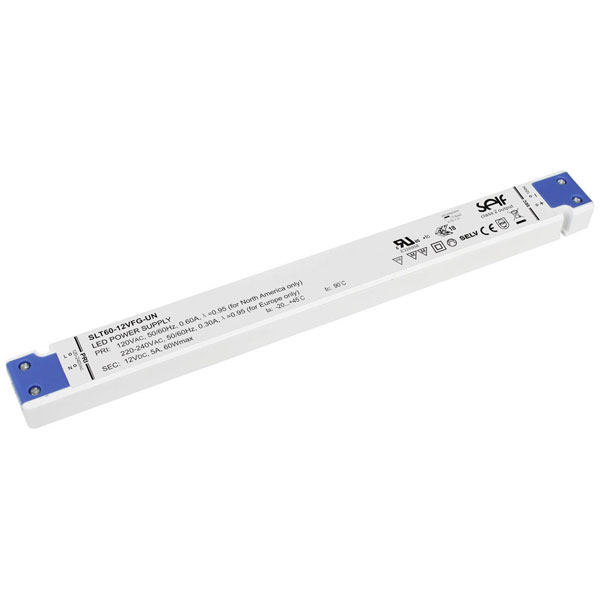

Self Electronics SLT60-12VFG-UN SLT-series LED Driver 60W 12V 0-5A Non-dimmable

Self Electronics
Order Code:

10-5705

Brand: Self Electronics MPN: SLT60-12VFG-UN EAN-13: 4021087039116
Qty Unit Price (Ex VAT)
1+ £30.59
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
10 in stock, despatched in 4 working days

The Self Electronics SLT60-12VFG-UN LED driver offers a constant voltage of 12.0 V DC with a power output of 60 W and is approved for use on furniture. It is equipped with surge protection and overvoltage features but is not dimmable. This product is ideal for powering LED strips or other LED applications requiring a stable power supply.
Type LED driver
Connection Screw terminal
Dim (L x W x H) 298.00 x 29.80 x 16.00 mm
Height 16.00mm
Input voltage (max.) 264V AC
IP rating IP20
Length 298.00mm
Max. output current 5A
Max. power 60W
Max. temperature 45°C
Min. input voltage 198V AC
Min. temperature -20°C
Misc Attribute 1 Constant voltage
Misc Attribute 2 Synchronised
No. of inputs 1
No. of outputs 1
Operating current 700mA
Operating voltage 230V AC
Output current (max.) - rounded 5A
Output current (min.) 0A
Output voltage (max.) 12.0V DC
Output voltage (min.) 12.0V DC
Power (min.) 0W
Power range 0 up to 60 W
Test mark CE; SELV, MM; ENEC, UL
Width 29.80mm
