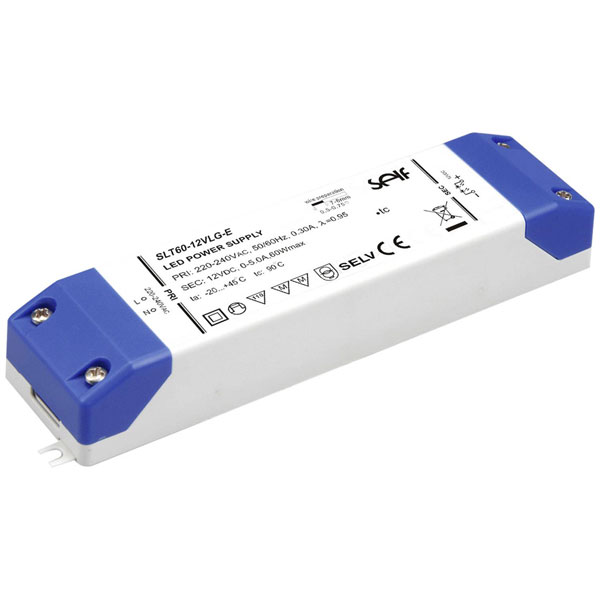

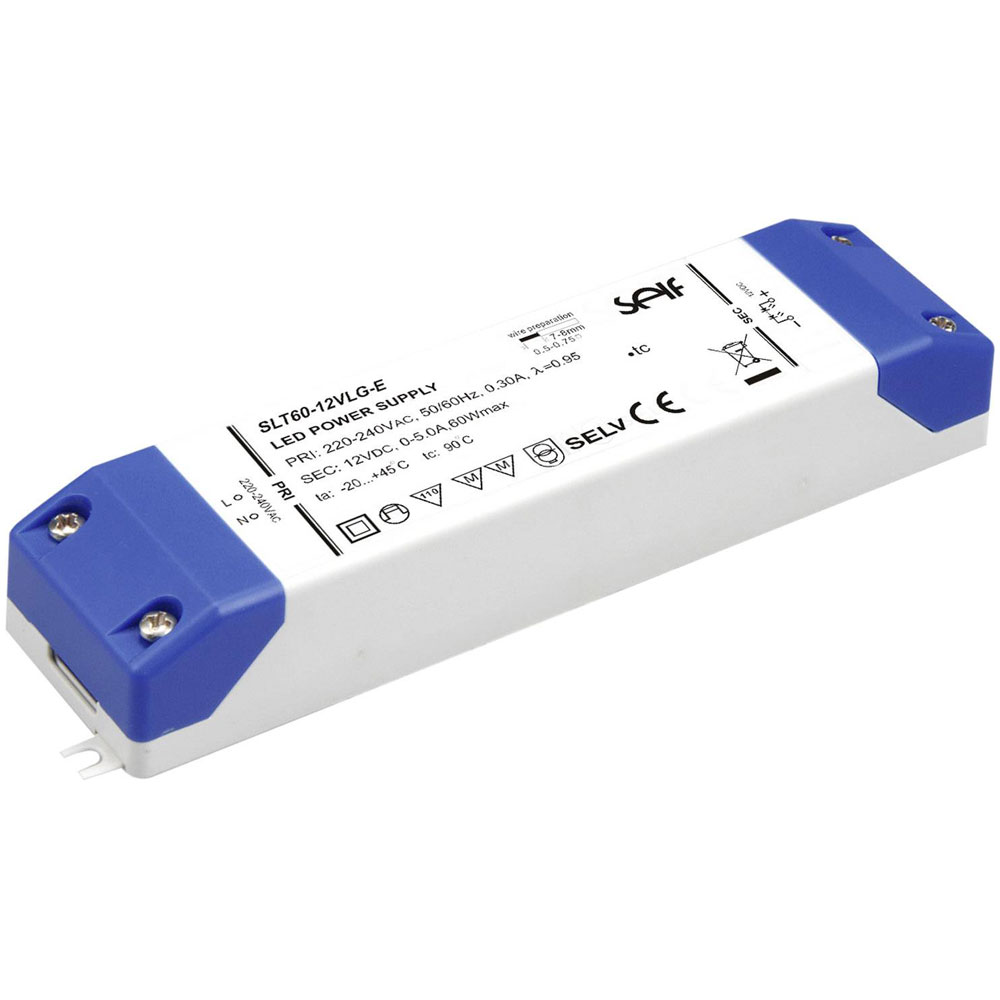

Self Electronics SLT60-12VLG-E LED Driver 60W 12V Surge Protected Furniture Safe

Self Electronics
Order Code:

10-5707

Brand: Self Electronics MPN: SLT60-12VLG-E EAN-13: 4021087039109
Qty Unit Price (Ex VAT)
1+ £29.71
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
21 in stock, despatched in 4 working days

The Self Electronics SLT60-12VLG-E LED driver is a 60 W constant voltage power supply approved for use on furniture applications. It offers surge protection and overvoltage safety but is not dimmable. This product is ideal for powering LED strips and other LED fixtures requiring a 12 V DC input.
Type LED driver
Connection Screw terminal
Dim (L x W x H) 188.00 x 45.00 x 30.00 mm
Height 30.00mm
Input voltage (max.) 264V AC
IP rating IP20
Length 188.00mm
Max. output current 5A
Max. power 60W
Max. temperature 45°C
Min. input voltage 198V AC
Min. temperature -20°C
Misc Attribute 1 Constant voltage
Misc Attribute 2 Synchronised
No. of inputs 1
No. of outputs 1
Operating current 300mA
Operating voltage 230V AC
Output current (max.) - rounded 5A
Output current (min.) 0A
Output voltage (max.) 12.0V DC
Output voltage (min.) 12.0V DC
Power (min.) 0W
Power range 0 up to 60 W
Test mark CE; SELV,; MM; Intertek; CCC
Width 45.00mm
