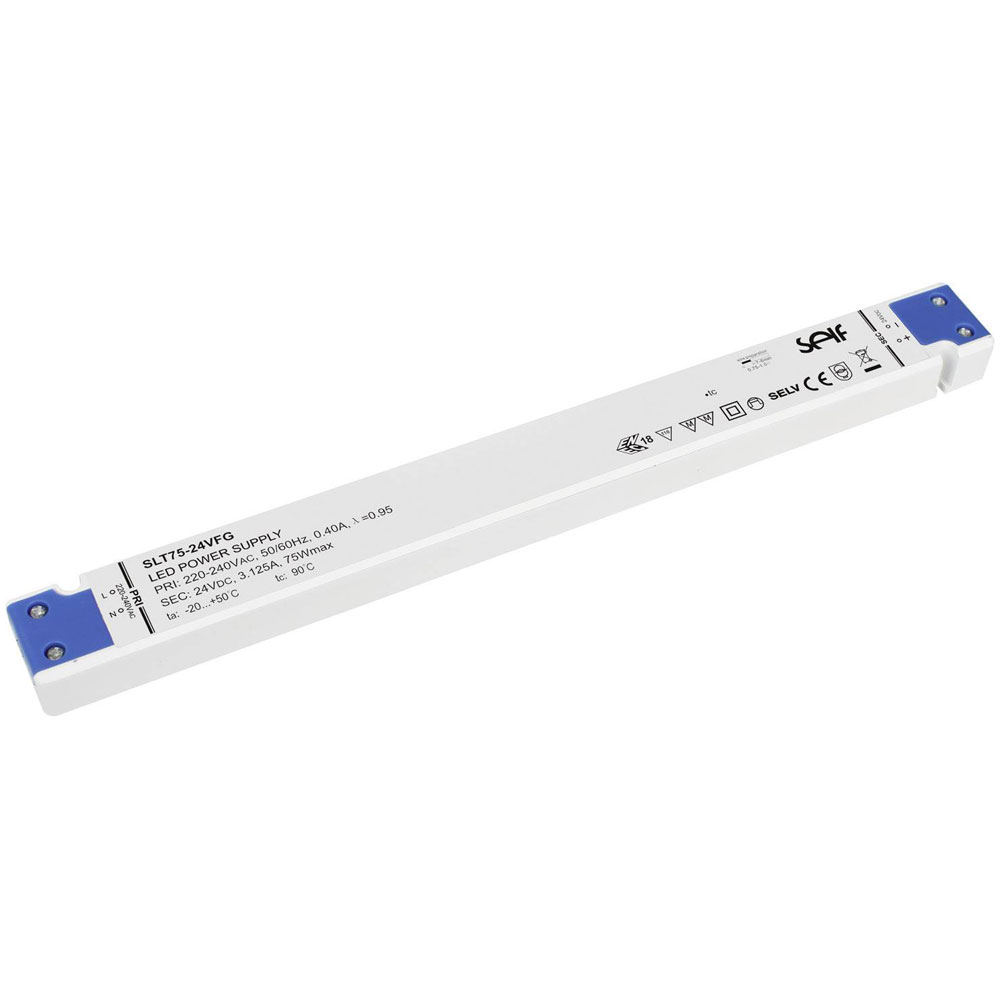

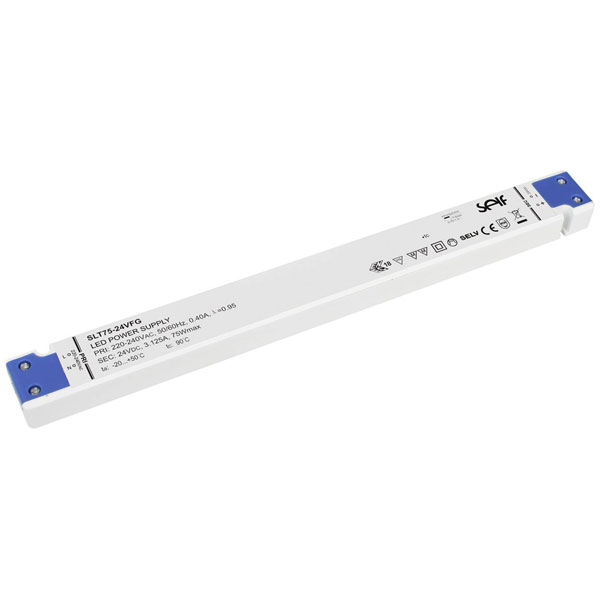

Self Electronics SLT75-24VFG LED Driver 75W 24V DC Surge Protected Non-Dimmable

Self Electronics
Order Code:

10-5722

Brand: Self Electronics MPN: SLT75-24VFG EAN-13: 4021087039062
Qty Unit Price (Ex VAT)
1+ £30.59
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
23 in stock, despatched in 4 working days

The Self Electronics SLT75-24VFG LED driver delivers a constant voltage of 24.0 V DC with a power output of 75 W and a current rating of 0 - 3.1 A, and it's approved for use on furniture. This LED driver features surge protection and is not dimmable, making it suitable for stable LED strip lighting applications. It's particularly well-suited for installations where overvoltage protection is necessary.
Type LED driver
Connection Screw terminal
Dim (L x W x H) 298.00 x 29.80 x 16.50 mm
Height 16.50mm
Input voltage (max.) 264V AC
IP rating IP20
Length 298.00mm
Max. output current 3.1A
Max. power 75W
Max. temperature 50°C
Min. input voltage 198V AC
Min. temperature -20°C
Misc Attribute 1 Constant voltage
Misc Attribute 2 Synchronised
No. of inputs 1
No. of outputs 1
Operating current 400mA
Operating voltage 230V AC
Output current (max.) - rounded 3.1A
Output current (min.) 0A
Output voltage (max.) 24.0V DC
Output voltage (min.) 24.0V DC
Power (min.) 0W
Power range 0 up to 75 W
Test mark CE; SELV; MM; ENEC
Width 29.80mm
