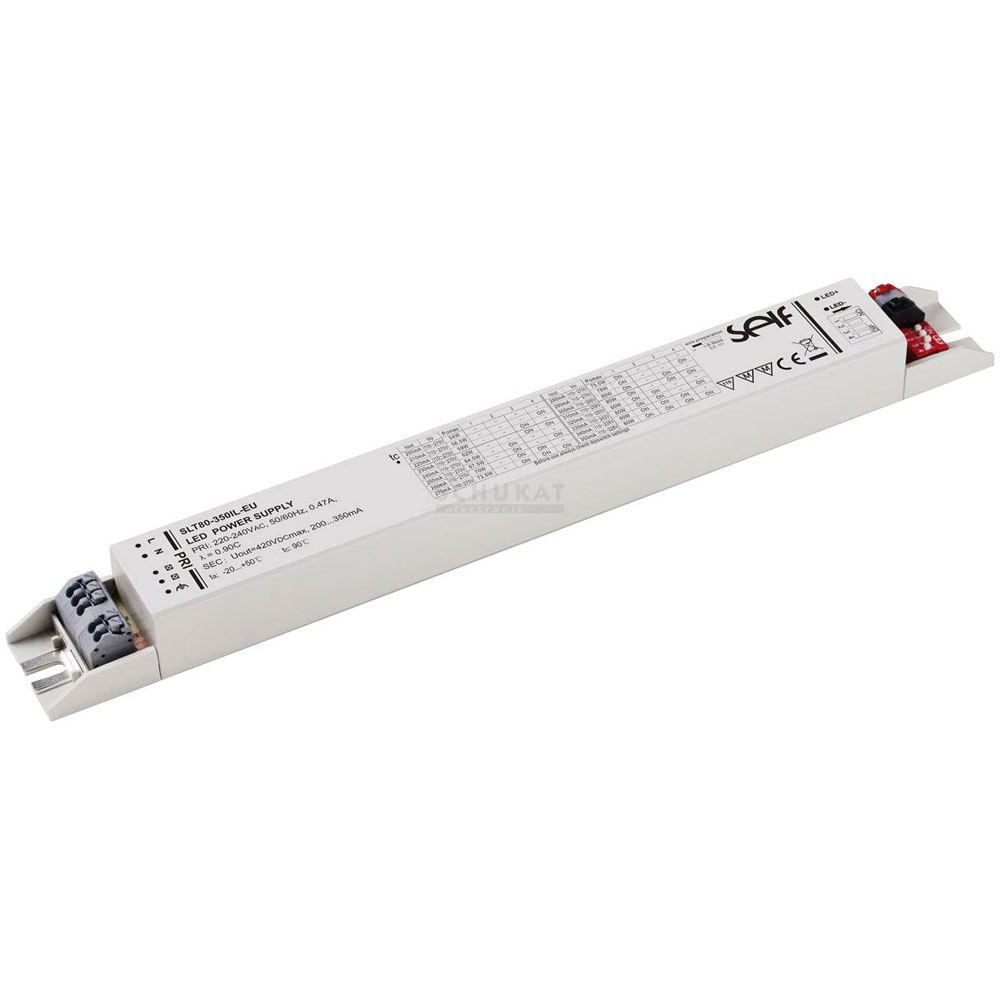

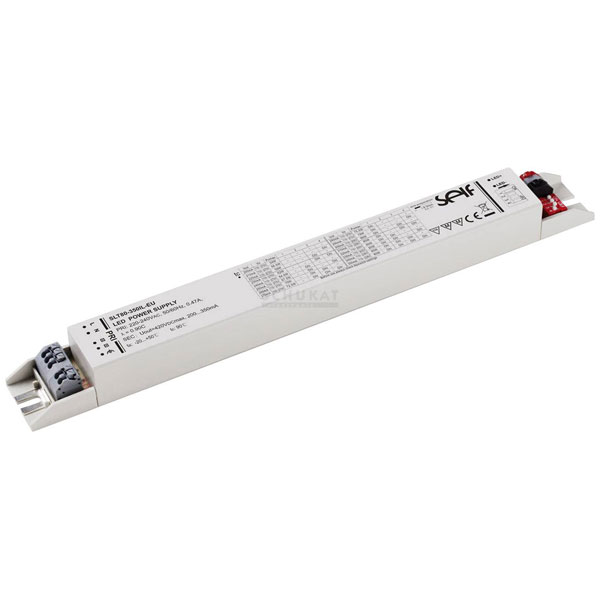

Self Electronics SLT80-700IL-EU LED Driver 80W 325-700mA Surge Protected

Self Electronics
Order Code:

10-5725

Brand: Self Electronics MPN: SLT80-700IL-EU EAN-13: 4021087047920
Qty Unit Price (Ex VAT)
1+ £18.16
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
4 in stock, despatched in 4 working days

The Self Electronics SLT80-700IL-EU LED driver is a constant current 80 W unit with an adjustable output of 325 - 700 mA and 60 - 246 V DC. It features surge protection and overvoltage safeguards, but is not dimmable. This LED driver is ideal for powering LED strips and other lighting applications requiring consistent and reliable power delivery.
Type LED driver
Connection Push-in connector
Dim (L x W x H) 280 x 30 x 22 mm
Factory colour Grey
Height 22mm
Input voltage (max.) 264V AC
IP rating IP20
Length 280mm
Max. output current 700mA
Max. power 80W
Max. temperature +50°C
Min. input voltage 198V AC
Min. temperature -20°C
Misc Attribute 1 Constant current
Misc Attribute 2 Pulsed
No. of inputs 1
No. of outputs 1
Operating voltage 230V AC
Output current (max.) - rounded 700mA
Output current (min.) 325mA
Output voltage (max.) 246V DC
Output voltage (min.) 60V DC
Power (min.) 34W
Power range 34 up to 80 W
Width 30mm
