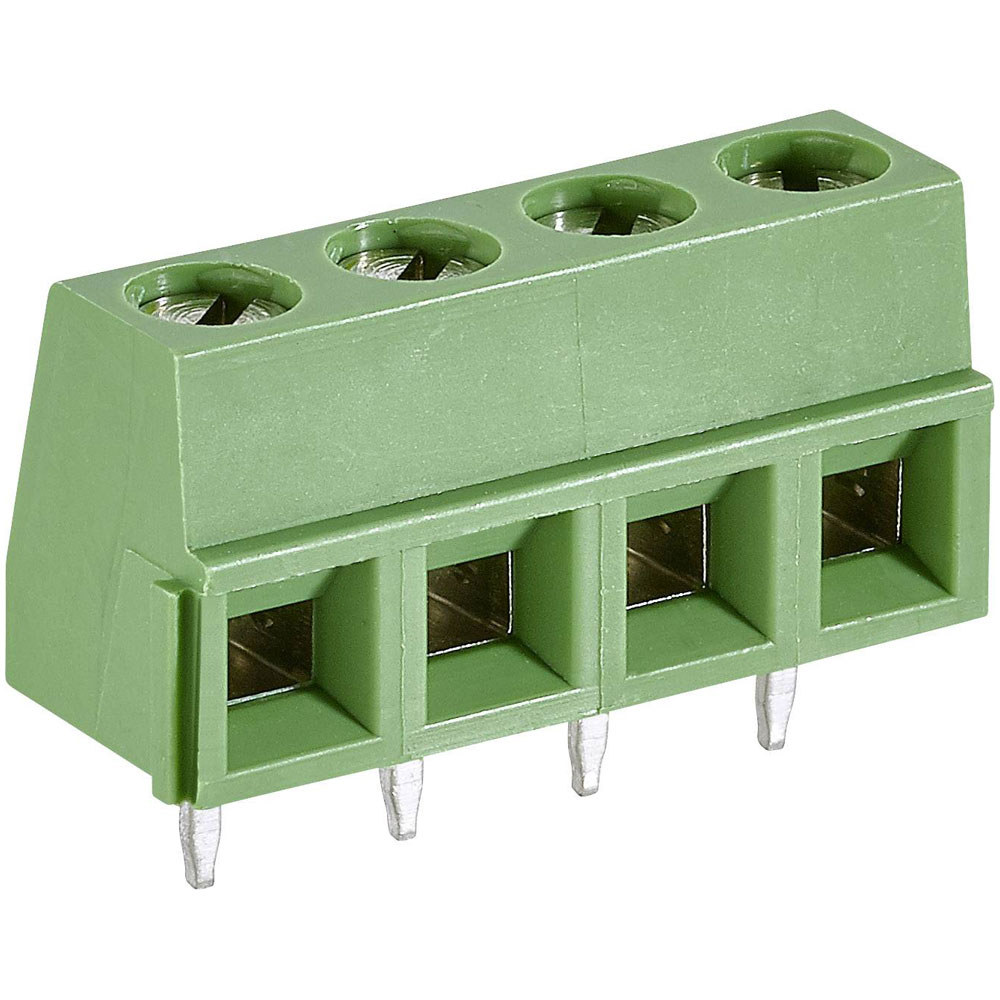

TE Connectivity 282836-4 Screw Terminal 4 Pins 1.31mm² Green

TE Connectivity
Order Code:

07-4266

Brand: TE Connectivity MPN: 282836-4 EAN-13: 2050003932783
Qty Unit Price (Ex VAT)
5+ £0.874
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
Available to back orderBack order, lead time 9 weeks

The TE Connectivity 282836-4 is a fixed terminal block designed for PCB mounting with a 5.0 mm pitch and four positions.

It provides secure and durable connections, ensuring reliability in electrical circuits.

Typically used in industrial and consumer electronics, it facilitates efficient electrical signal and power transmission.

The robust construction of the 282836-4 supports various applications, including control systems and automation equipment.


AWG (min.) 30
AWG max. 16
Connector orientation Perpendicular (to the PCB)
Contact material Brass tin plated
Cross section (flexible) (max.) 1.31mm²
Cross section (flexible) (min.) 1.31mm²
Cross section (inflexible) (max.) 0.05mm²
Cross section (inflexible) (min.) 0.05mm²
CS 5mm
Enclosure material Polyamide 6.6
Factory colour Green
Min. stripping length 10mm
No. of rows 1
Nominal current 13.5A
Nominal current - rounded value 13.5A
Nominal voltage 300V AC
Number of pins 4
Pins per row 4
Series Buchanan
Stripping length (max.) 10mm
Type Screw terminal
Weight 3.43
Wire protection Yes
