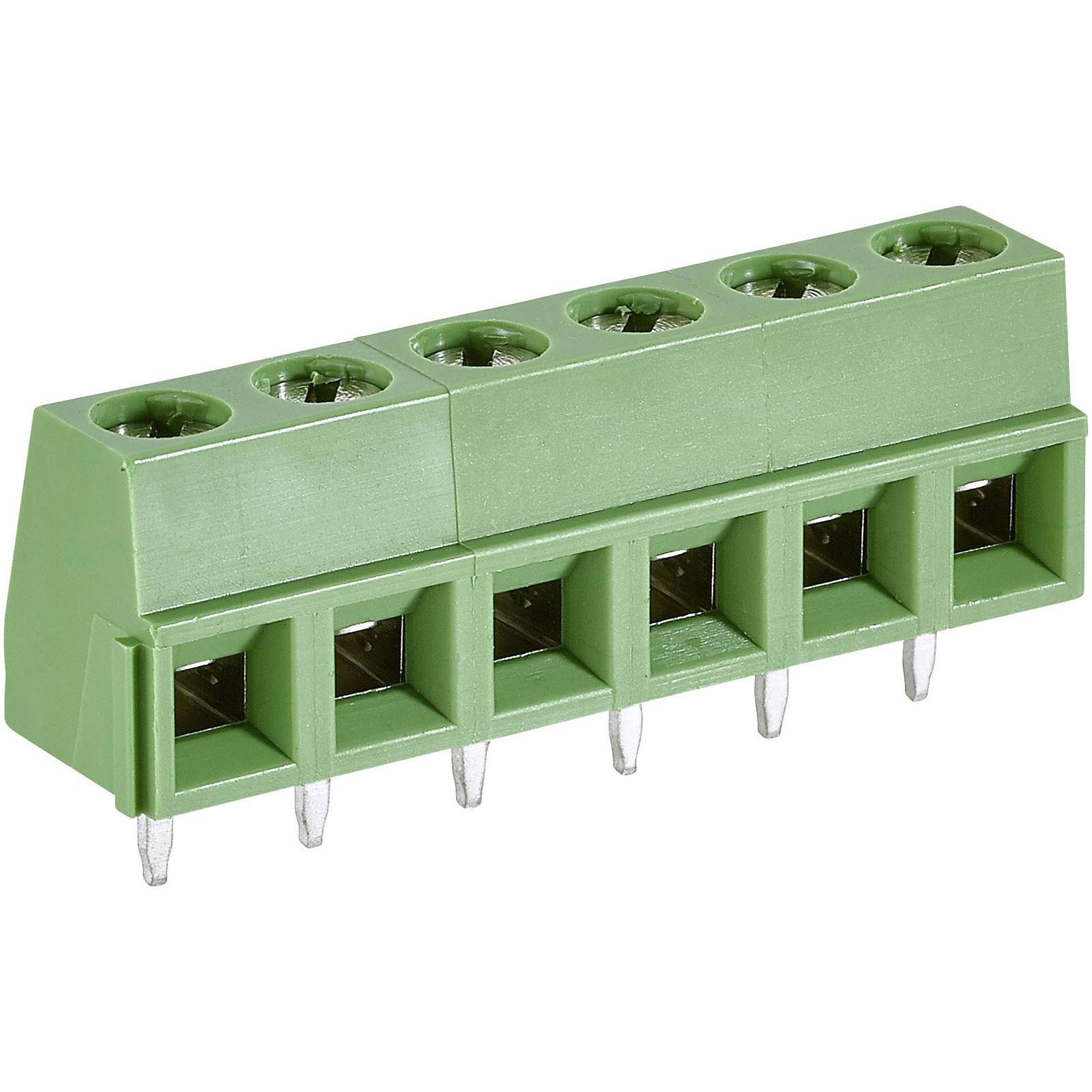

TE Connectivity 282836-6 Screw Terminal 1.31 Mm² 6 Pins Green

TE Connectivity
Order Code:

07-4268

Brand: TE Connectivity MPN: 282836-6 EAN-13: 2050003932677
Qty Unit Price (Ex VAT)
3+ £1.50
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
49 in stock, despatched in 4 working days

The TE Connectivity 282836-6 is a screw terminal block designed for printed circuit boards, supporting up to 1.31 mm² wire size. It features six pins and is finished in green, offering secure connections for electrical applications. This component is typically used in electronics and industrial settings where reliable PCB connectivity is essential.
AWG (min.) 30
AWG max. 16
Connector orientation Perpendicular (to the PCB)
Contact material Brass tin plated
Cross section (flexible) (max.) 1.31mm²
Cross section (flexible) (min.) 1.31mm²
Cross section (inflexible) (max.) 0.05mm²
Cross section (inflexible) (min.) 0.05mm²
CS 5mm
Enclosure material Polyamide 6.6
Factory colour Green
Min. stripping length 10mm
No. of rows 1
Nominal current 13.5A
Nominal current - rounded value 13.5A
Nominal voltage 300V AC
Number of pins 6
Pins per row 6
Series Buchanan
Stripping length (max.) 10mm
Type Screw terminal
Weight 5.157
Wire protection Yes
