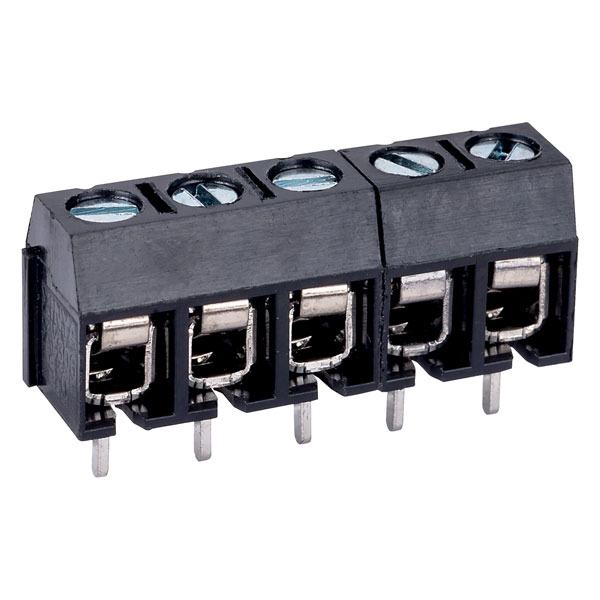

TruConnect 210445 5 Way 10A Black Interlocking Terminal Block 5mm

TruConnect
Order Code:

21-0445

Brand: TruConnect MPN: 21-0445
Qty Unit Price (Ex VAT)
5+ £0.427
10+ £0.330
50+ £0.279
100+ £0.242
250+ £0.213
500+ £0.192
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 5
2,870 in stock, despatched same dayAdditional 370 due on 17/09/2025

Vertical mounting, wire protector, interlocking moulded terminal block with 5 poles, 5mm pitch.


  • Vertical orientation
  • Interlocking (2-way and 3-way)
  • Wire protector clamp
  • 22 to14AWG (1.5mm²)
  • Slotted screws
  • Rated voltage: 300V
  • Rated current: 10A
  • Moulded housing in black flame retardant PBT
  • Screws: M2.5, zinc plated steel
  • Pin header: tin plated brass
  • Stainless steel wire guard
  • UL approved
Colour Black
Current Rating 10A
Mounting Direction Vertical
Mounting Type Through Hole
No. of Ways 5
Pitch 5mm
Voltage Rating 300V
Wire Gauge 1.5mm
Wire Gauge (AWG) 22 to 14AWG
Wire Termination Screw, Wire Protector
