Image Representative of Range

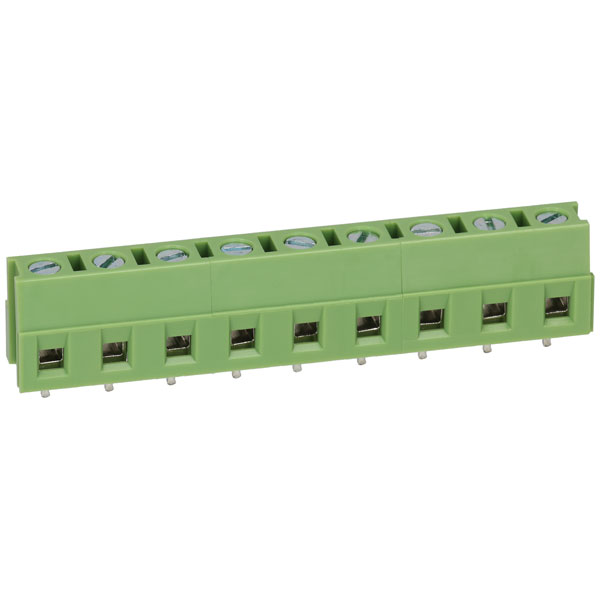

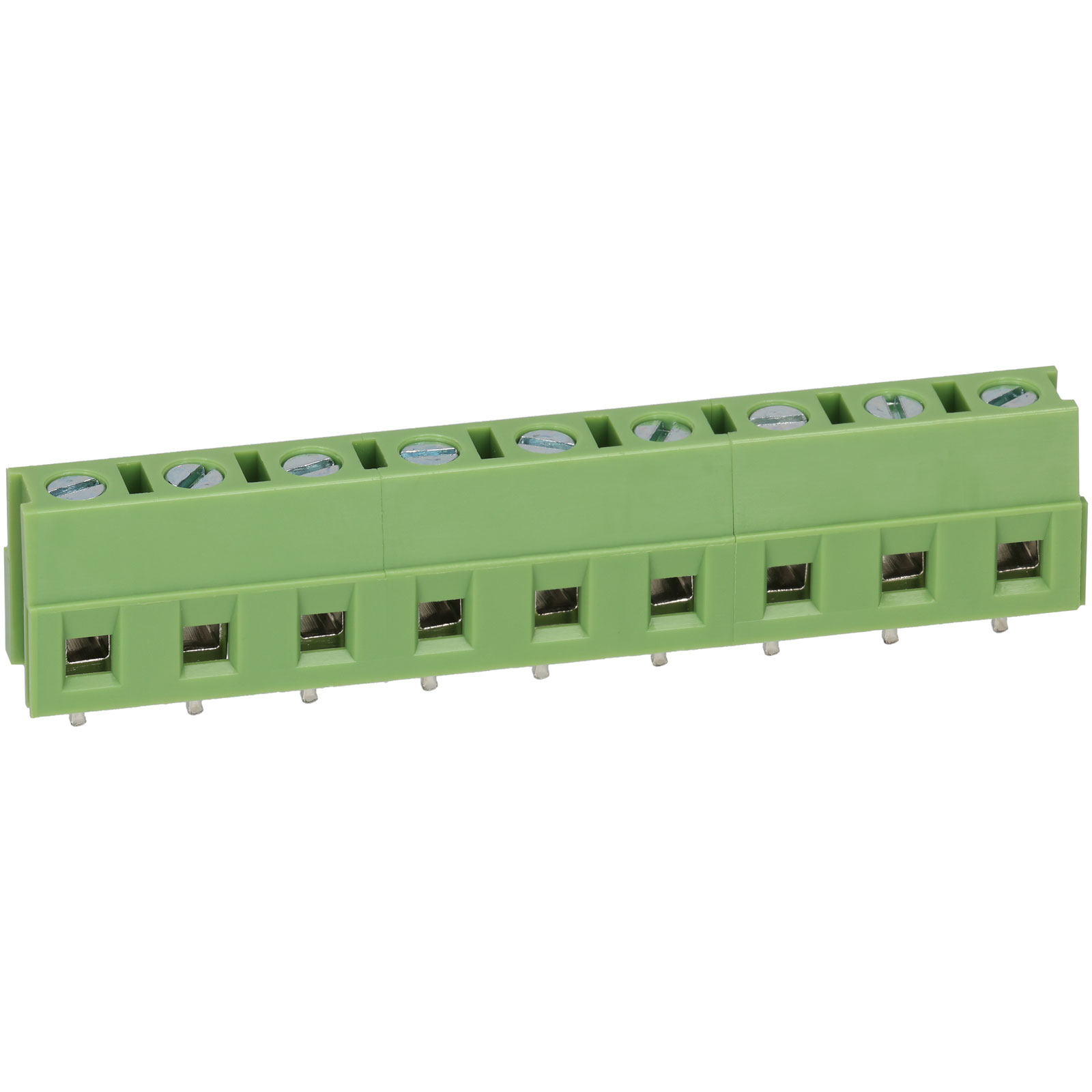

TruConnect 212959 9 Way 15A 300V Rising Clamp Terminal Block 7.5mm
Standard range
Order Code:
Brand:
TruConnect
MPN: 212959 EAN-13: 5053556021956 21-2959
- RoHS Compliant
- Country of Origin: China
- Free UK shipping available
- View Full Product Range (11)
Quickly find another product in this range by No. of Ways:
| Qty | Unit Price (Ex VAT) |
|---|---|
| 1+ | £1.60 |
| 10+ | £1.24 |
| 50+ | £1.05 |
| 100+ | £0.903 |
| 250+ | £0.796 |
| 500+ | £0.713 |
Price per unit Ex VAT
Vertical mounting, moulded rising clamp terminal block with 9 poles, 7.5mm pitch.
- Standard profile design
- Interlocking (2-way and 3-way)
- Vertical orientation
- Rising clamp
- Slotted screws
- 24 to 12AWG (2.5mm²)
- Rated voltage: 300V
- Rated current: 15A
- Moulded housing in green flame retardant PA66
- Screws: M2.5, zinc plated steel
- Pin header: tin plated brass
- UL approved
| Colour | Green |
|---|---|
| Current Rating | 15A |
| Mounting Direction | Vertical |
| Mounting Type | Through Hole |
| No. of Ways | 9 |
| Pitch | 7.5mm |
| Voltage Rating | 300V |
| Wire Gauge | 2.5mm² |
| Wire Gauge (AWG) | 24 to 12AWG |
| Wire Termination | Rising clamp |
