TruConnect 7 Way 15A 300V Top Entry Closed Header 5.08mm Pitch

TruConnect
Order Code:

21-2881

Brand: TruConnect MPN: 212881
Qty Unit Price (Ex VAT)
5+ £0.451
10+ £0.348
50+ £0.295
100+ £0.255
250+ £0.226
500+ £0.202
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 5
Out of stock100 due on 24/11/2025

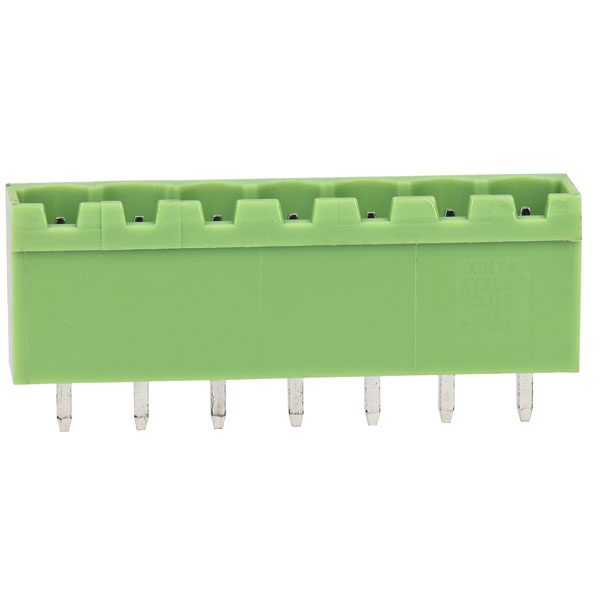

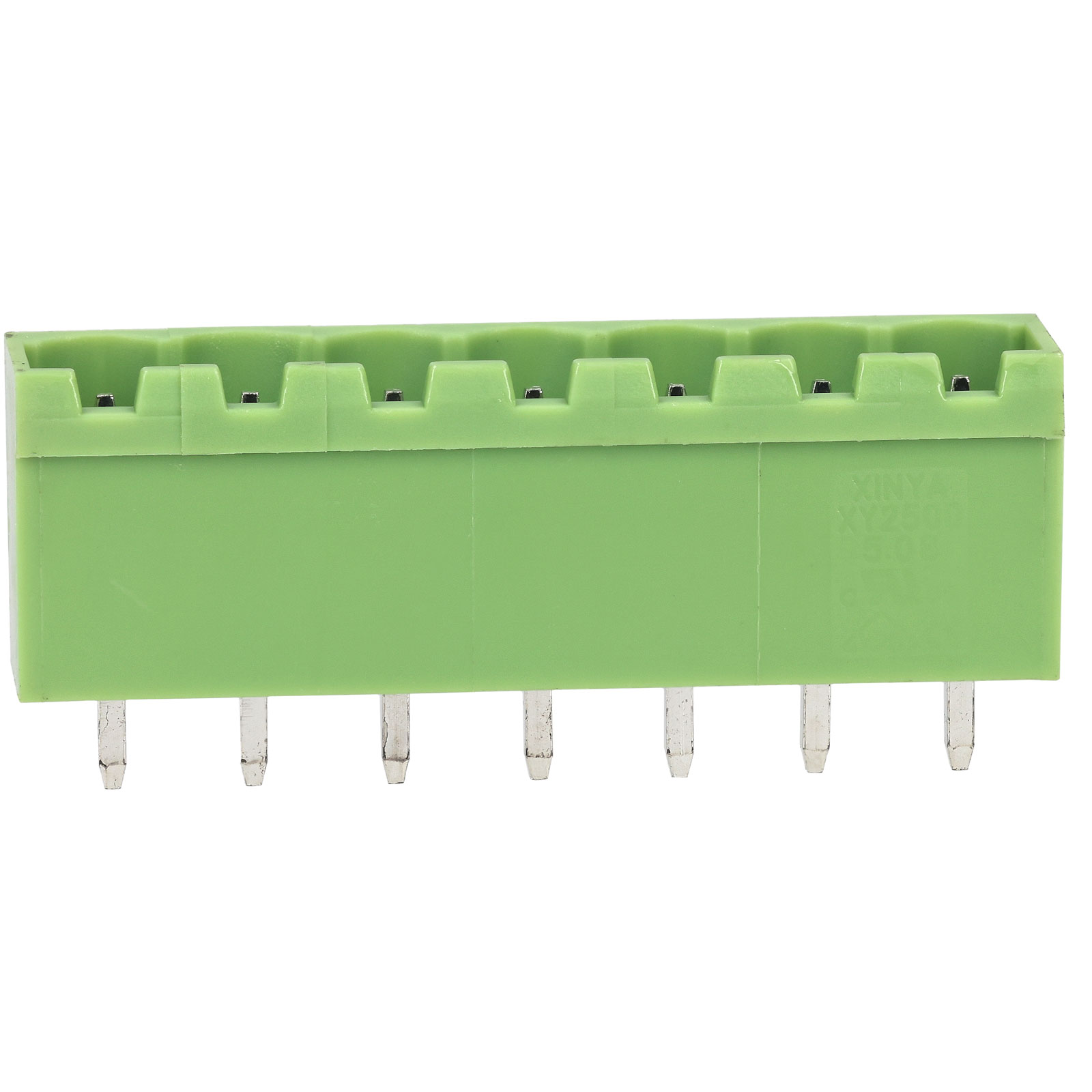

Top entry, closed header with 7 poles, 5.08mm pitch, designed for use with pluggable rising clamp terminal blocks.


  • Vertical orientation
  • Closed ended
  • Rated voltage: 300V
  • Rated current: 15A
  • Moulded housing in green flame retardant PA66
  • PCB mounting, Solder
  • Pin header: tin plated brass
  • UL Approved

UL, VDE Approved.
Current Rating 15A
Pitch 5.08mm
Body Style Closed header
Flame Retardancy UL94-V0
Material PA66
Mounting PCB
Number of Ways 7
Termination Pluggable
Type Vertical Top Entry Header
