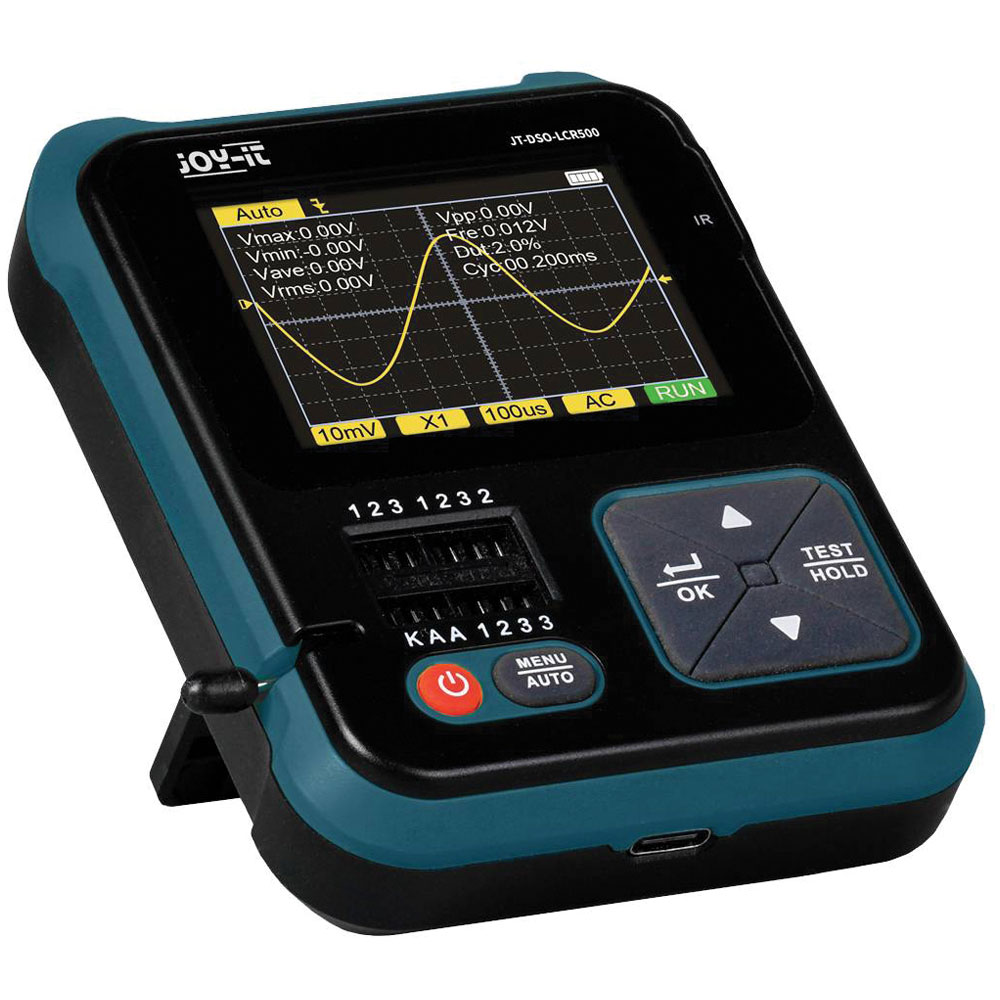

Joy-it LCR500 Handheld Oscilloscope with robust battery

The DSO-LCR500 combines the advantages of a digital oscilloscope and a multi-functional component tester in a compact and high-quality housing. With the help of the digital oscilloscope ambitious inventors can evaluate time-dependent signals without the option of using expensive measurement technology. The multifunctional component tester also enables quick and automatic detection of components. Furthermore, our DSO-LCR500 has additional useful functions, such as a signal generator, an infrared signal decoder and measurement of Zener diodes, DS18B20 sensors and DHT11 sensors. The device is equipped with a 1500 mAh strong battery, which can be conveniently charged via USB-C. The integrated, fold-out base also simplifies operation. The extensive scope of supply includes SMD test tips, test terminals, probe, alligator clip cable and BNC adapter.

No. of Channels	1
Type	Oscilloscope
Screen Size	LCD
Calibrated to	Manufacturer's standards (no certificate)
Dim	(W x H) 85 mm x 103 mm
Frequency Range	1 kHz - 100 kHz
Height	103mm
Max. frequency	100kHz
Min. frequency	1kHz
Misc Attribute	DSO-LCR500
Signal output type	Sine wave, square wave, pulse wave, triangular wave, sawtooth shaft
Width	85mm
