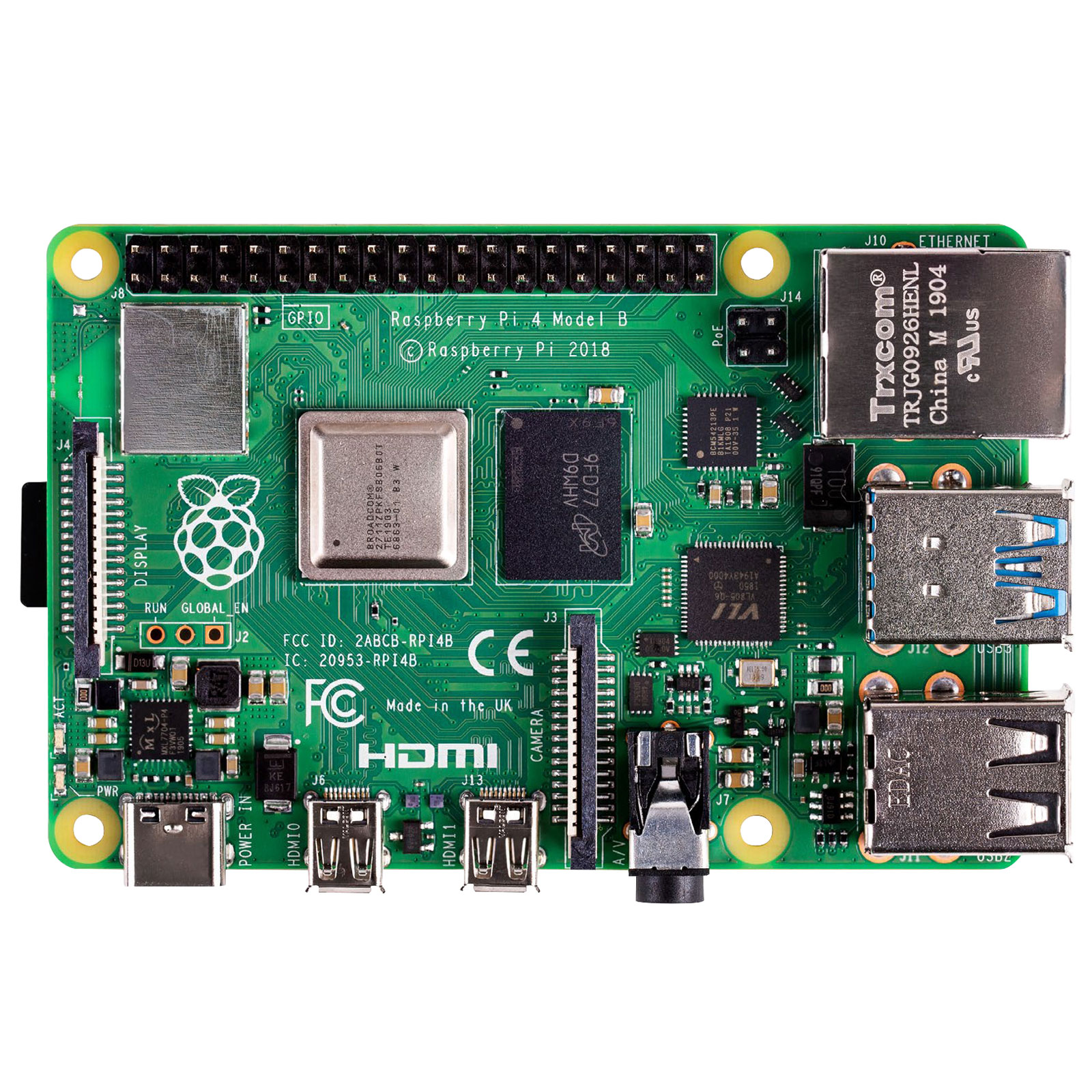

Raspberry Pi SC0193(11) 4 Model-B 2GB RAM 64-Bit Quad-Core SBC

The Raspberry Pi 4 Model B SC0193(11) provides ground-breaking increases in processor speed, multimedia performance, memory, and connectivity compared to the previous generation Raspberry Pi 3 Model B+, whilst still retaining backwards compatibility and similar power consumption.

The Raspberry Pi 4 Model B provides desktop performance comparable to entry-level x86 PC systems.

Key features include a high-performance 64-bit quad-core processor, dual-display support at resolutions up to 4K via two micro-HDMI ports, hardware video decode at up to 4Kp60, 2GB of RAM, dual-band 2.4/5.0GHz wireless LAN, Bluetooth 5.0, Gigabit Ethernet, USB 3.0, and PoE capability (when a separate PoE HAT add-on is fitted).

The board can be designed into end products with significantly reduced compliance testing, as the dual-band wireless LAN and Bluetooth have modular compliance certification, resulting in both improved cost and time to market.

• Broadcom BCM2711, Quad core Cortex-A72 (ARM v8) 64-bit SoC @ 1.8GHz
• 2GB LPDDR4-3200 SDRAM
• 2.4 GHz and 5.0 GHz IEEE 802.11ac wireless, Bluetooth 5.0, BLE
• Gigabit Ethernet
• 2 USB 3.0 ports; 2 USB 2.0 ports
• Raspberry Pi standard 40 pin GPIO header (fully backwards compatible with previous boards)
• 2 micro-HDMI® ports
• 2-lane MIPI DSI display port
• 2-lane MIPI CSI camera port
• 4-pole stereo audio and composite video port
• H.265 (4kp60 decode), H264 (1080p60 decode, 1080p30 encode)
• OpenGL ES 3.1, Vulkan 1.0
• Micro-SD card slot, for loading operating system and data storage
• 5V DC via USB-C connector (minimum 3A)
• 5V DC via GPIO header (minimum 3A)
• Power over Ethernet (PoE) enabled (requires separate PoE HAT)
• Operating temperature: 0 – 50^oC ambient
