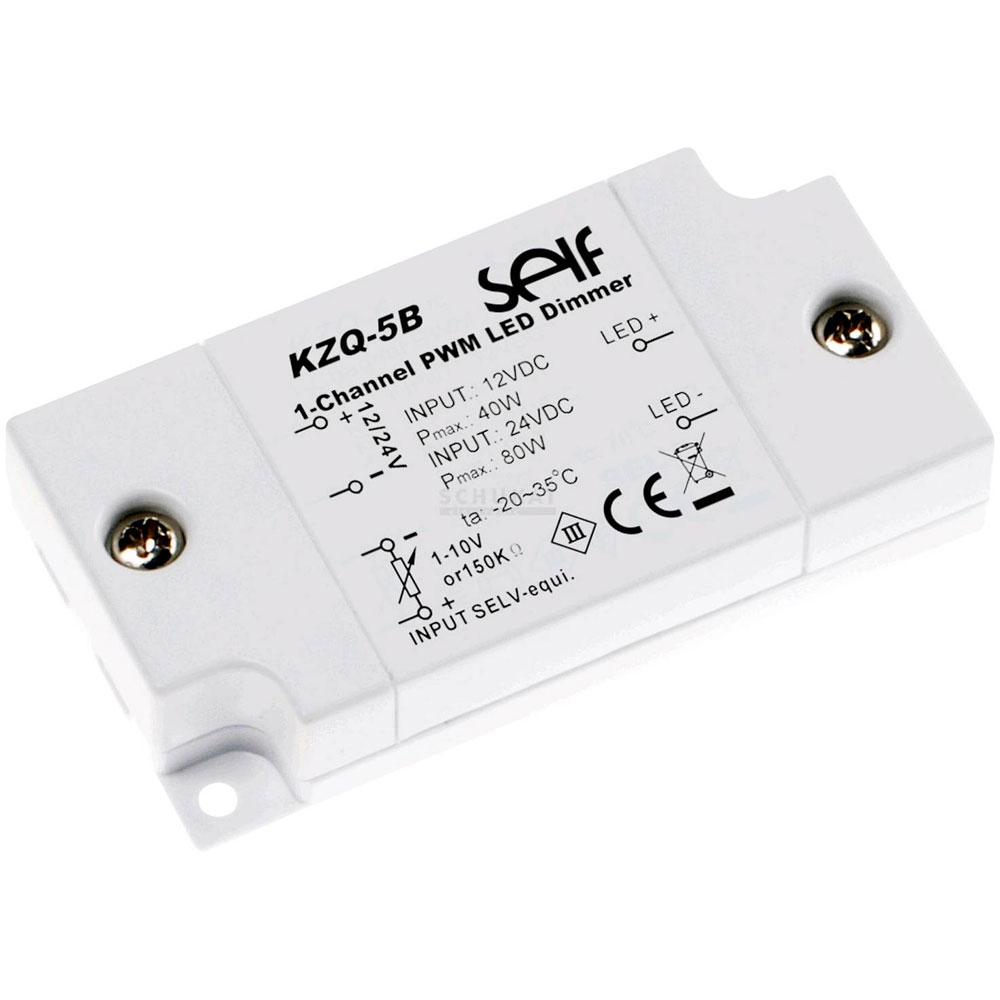

Self Electronics KZQ-5B LED Driver 80W 12-24V DC PWM-Dimmer Compact Design

Self Electronics
Order Code:

10-5652

Brand: Self Electronics MPN: KZQ-5B EAN-13: 4021087039826
Qty Unit Price (Ex VAT)
1+ £11.02
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
27 in stock, despatched in 4 working days

Self Electronics manufactures the KZQ-5B LED driver, a constant voltage power supply with an output of 80 W and current ranging from 0 to 3.33 A. This LED driver supports voltages between 12 and 24 V DC, making it suitable for various LED applications. It is typically used in powering LED strips or other lighting solutions that require a stable power source.
Type LED driver
Connection Screw terminal
Dim (L x W x H) 78.00 x 40.00 x 16.00 mm
Factory colour Grey
Height 16.00mm
Input voltage (max.) 24V DC
Length 78.00mm
Max. output current 3.33A
Max. power 80W
Max. temperature 35°C
Min. input voltage 12V DC
Min. temperature -20°C
Misc Attribute Constant voltage
No. of inputs 1
No. of outputs 1
Output current (max.) - rounded 3.33A
Output current (min.) 0A
Output voltage (max.) 24V DC
Output voltage (min.) 12V DC
Power (min.) 80W
Power range 80 up to 80 W
Protection class III
Test mark CE
Width 40.00mm
