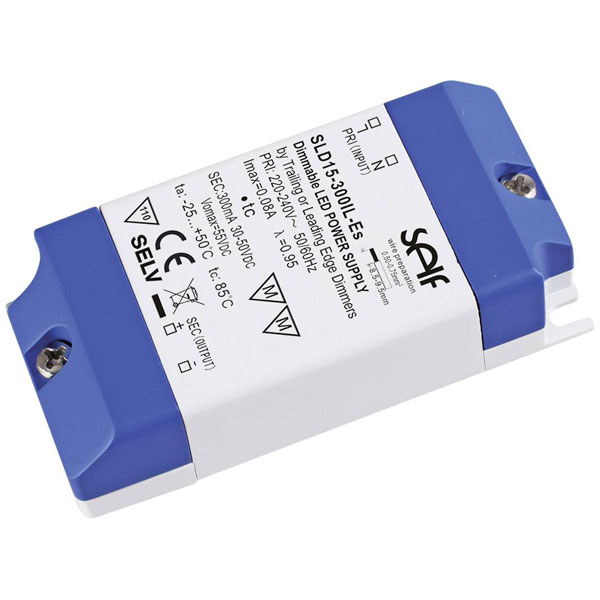

Self Electronics SLD15-300IL-ES SLD15 Series Dimmable LED Driver 300mA 14.4W

Self Electronics
Order Code:

10-5655

Brand: Self Electronics MPN: SLD15-300IL-ES EAN-13: 4021087047449
Qty Unit Price (Ex VAT)
1+ £14.00
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
67 in stock, despatched in 4 working days

The Self Electronics SLD15-300IL-ES LED driver delivers a constant current of 300 mA at 14.4 W, supporting 24 - 48 V DC and includes overvoltage and surge protection. This dimmable LED driver is ideal for use in LED strip applications and provides reliable power control. Suitable for various LED installations, it ensures efficient and safe operation.
Type LED driver
Connection Screw terminal
Dim (L x W x H) 85.3 x 41 x 22 mm
Height 22mm
Input voltage (max.) 264V AC
IP rating IP20
Length 85.3mm
Max. output current 300mA
Max. power 14.4W
Max. temperature 50°C
Min. input voltage 198V AC
Min. temperature -25°C
Misc Attribute 1 Constant current
Misc Attribute 2 Pulsed
No. of inputs 1
No. of outputs 1
Operating voltage 230V AC
Output current (max.) - rounded 300mA
Output voltage (max.) 48V DC
Output voltage (min.) 24V DC
Power range 14.4 W (max)
Protection class II
Test mark SELV, CE, ENEC (pending)
Width 41mm
