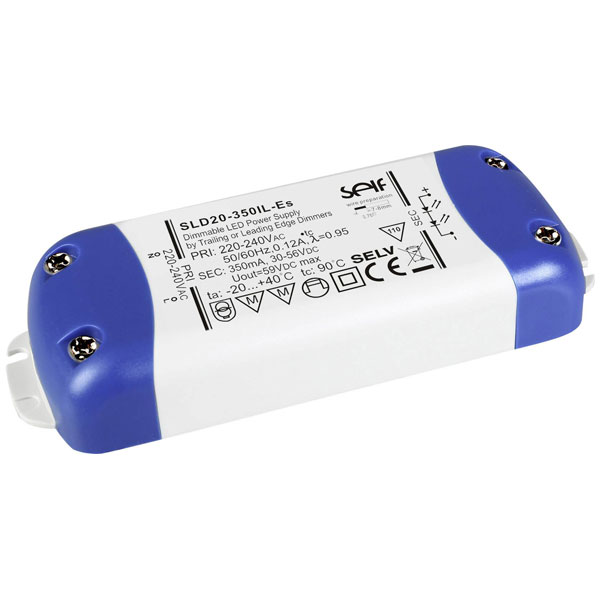

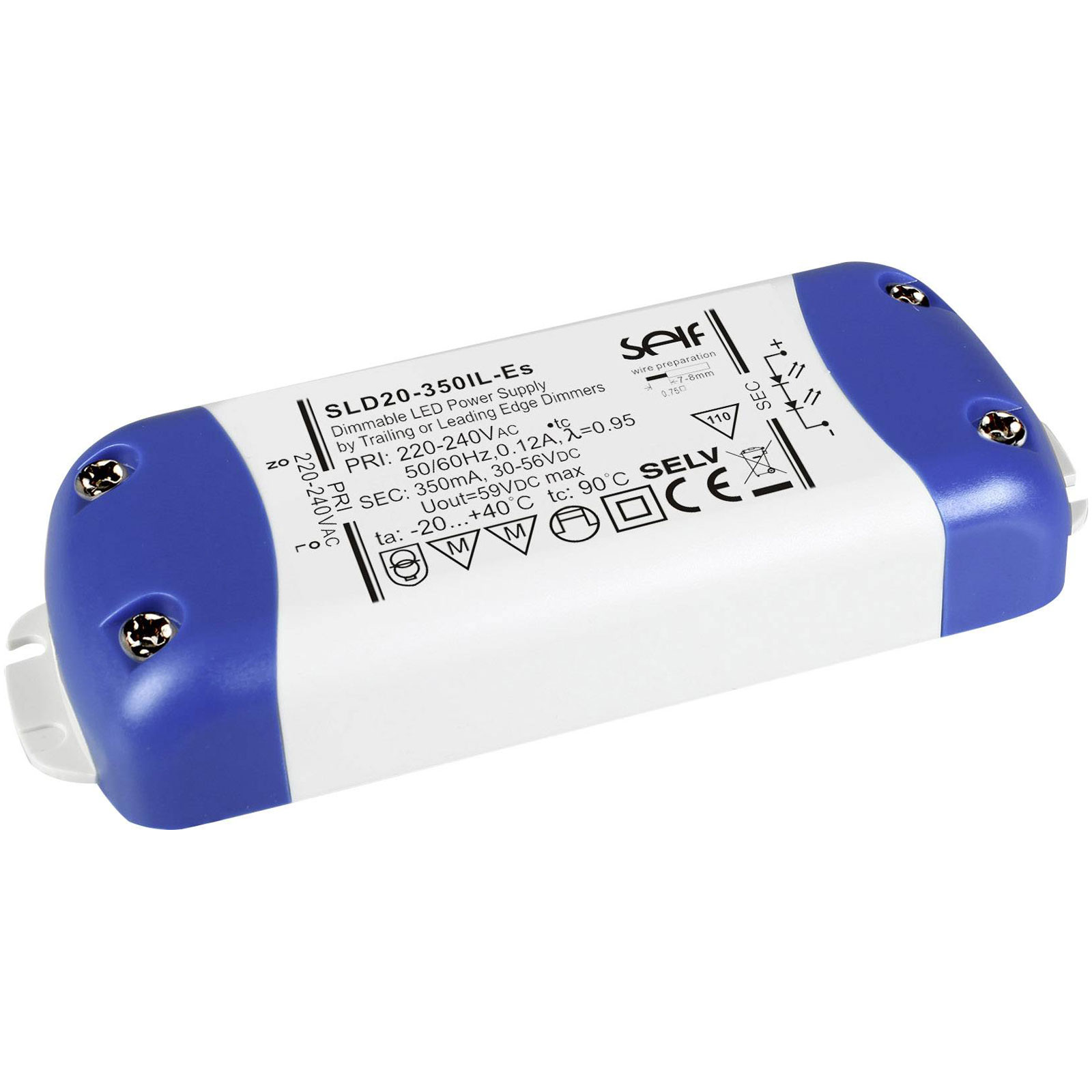

Self Electronics SLD20-700IL-ES LED Driver CC 20.3W 700mA Dimmable

Self Electronics
Order Code:

10-5661

Brand: Self Electronics MPN: SLD20-700IL-ES EAN-13: 4021087047289
Qty Unit Price (Ex VAT)
1+ £15.99
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
4 in stock, despatched in 4 working days

Self Electronics manufactures the SLD20-700IL-ES LED driver, which delivers a constant current of 700 mA and a power output of 20.3 W, suitable for use with LED strip lighting. The driver is dimmable and equipped with surge and overvoltage protection, making it ideal for use on flammable surfaces. It is typically deployed in environments where reliable and safe LED power supply is required, such as residential or commercial lighting installations.
Type LED driver
Connection Screw terminal
Dim (L x W x H) 121 x 45 x 20 mm
Height 20mm
Input voltage (max.) 264V AC
IP rating IP20
Length 121mm
Max. output current 700mA
Max. power 20.3W
Max. temperature 40°C
Min. input voltage 198V AC
Min. temperature -20°C
Misc Attribute Constant current
No. of inputs 1
No. of outputs 1
Operating current 120mA
Operating voltage 230V AC
Output current (max.) - rounded 700mA
Output voltage (max.) 29V DC
Output voltage (min.) 15V DC
Power (min.) 10.5W
Power range 10.5 up to 20.3 W
Protection class II
Test mark Getaktet
Width 45mm
