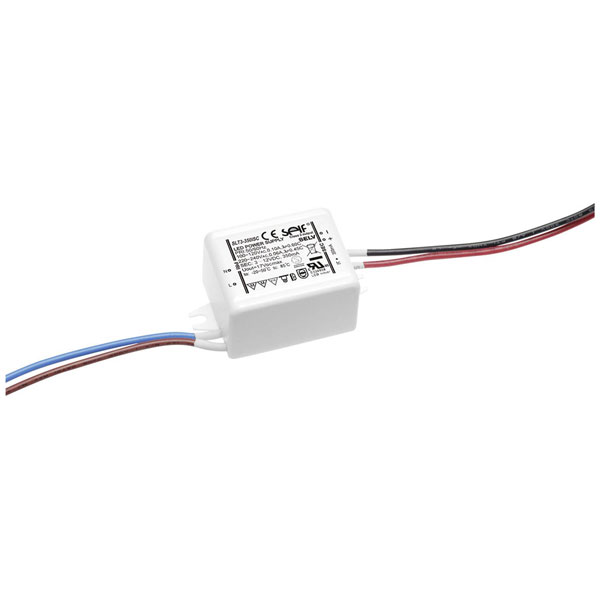

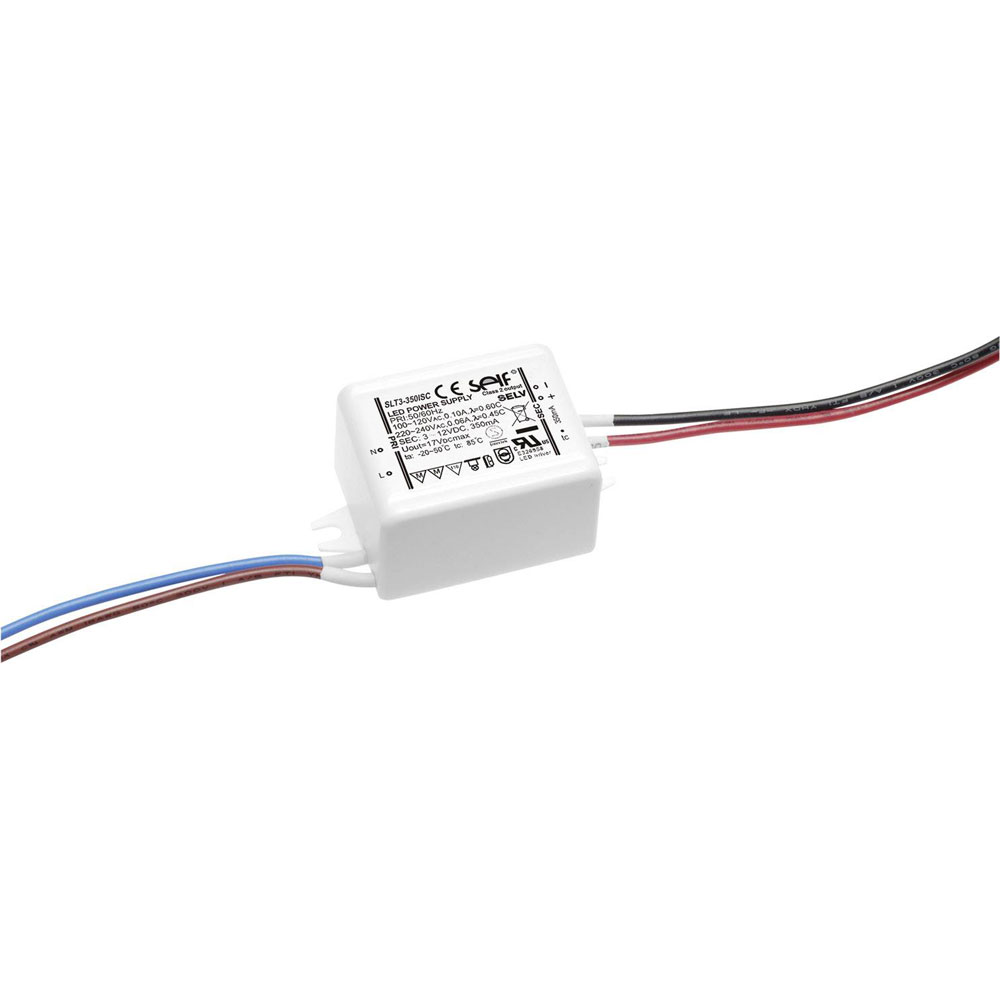

Self Electronics SLT3-350ISC LED Driver Constant Current IP66 Surge Protection

Self Electronics
Order Code:

10-5696

Brand: Self Electronics MPN: SLT3-350ISC EAN-13: 4021087039437
Qty Unit Price (Ex VAT)
1+ £10.02
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 11 days

The Self Electronics SLT3-350ISC LED driver is a constant current unit providing 4.3W and 350mA with a voltage range of 3.0 - 12.0V DC, approved for use on furniture. It features surge protection and is not dimmable, making it ideal for stable lighting applications. This LED driver is perfect for powering LED strips and other LED installations requiring reliable performance.
Type LED driver
Connection Open end cable
Dim (L x W x H) 52.00 x 30.00 x 23.00 mm
Factory colour White
Height 23.00mm
Input voltage (max.) 264V AC
IP rating IP66
Length 52.00mm
Max. output current 350mA
Max. power 4.3W
Max. temperature 50°C
Min. input voltage 90V AC
Min. temperature -20°C
Misc Attribute 1 Constant current
Misc Attribute 2 Synchronised
No. of inputs 1
No. of outputs 1
Operating current 60mA
Output current (max.) - rounded 350mA
Output current (min.) 350mA
Output voltage (max.) 12.0V DC
Output voltage (min.) 3.0V DC
Power (min.) 1.05W
Power range 1.05 up to 4.3 W
Test mark CE; SELV,; MM; Intertek; UL
Width 30.00mm
