Self Electronics SLT3-700IS-1 LED Driver, 700mA, Surge Protection, Non-dimmable

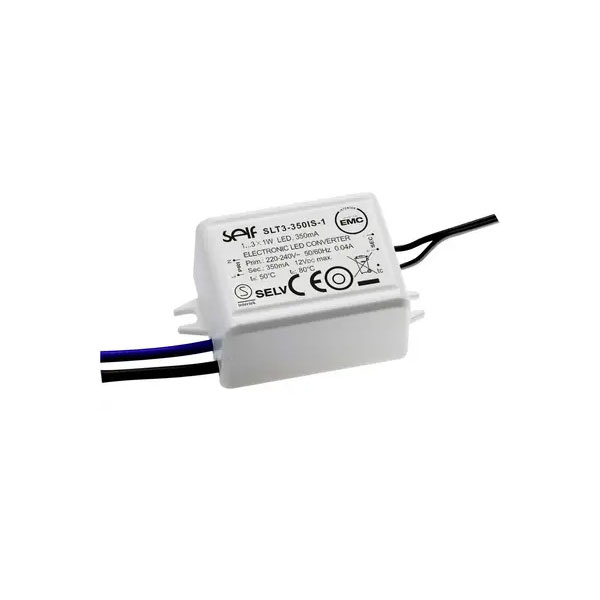

Image Representative of Range

Self Electronics SLT3-700IS-1 LED Driver, 700mA, Surge Protection, Non-dimmable

Self Electronics
Order Code:

10-5699

Brand: Self Electronics MPN: SLT3-700IS-1 EAN-13: 4021087039420
Qty Unit Price (Ex VAT)
1+ £6.77
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
43 in stock, despatched in 4 working days

The Self Electronics SLT3-700IS-1 LED driver provides a constant current of 700 mA and has a power output of 2.94 W with a voltage range of 2.0 - 4.2 V DC. It is designed with surge protection and overvoltage security, approved for use on furniture, but it is not dimmable. This LED driver is ideal for powering LED strips and other compact lighting applications where a reliable power supply is needed.
Type LED driver
Connection Open end cable
Dim (L x W x H) 50.00 x 30.00 x 20.00 mm
Factory colour White
Height 20.00mm
Input voltage (max.) 264V AC
IP rating IP20
Length 50.00mm
Max. output current 700mA
Max. power 2.94W
Max. temperature 45°C
Min. input voltage 198V AC
Min. temperature -20°C
Misc Attribute 1 Constant current
Misc Attribute 2 Synchronised
No. of inputs 1
No. of outputs 1
Operating current 50mA
Operating voltage 230V AC
Output current (max.) - rounded 700mA
Output current (min.) 700mA
Output voltage (max.) 4.2V DC
Output voltage (min.) 2.0V DC
Power (min.) 1.4W
Power range 1.4 up to 2.94 W
Test mark CE; SELV,; MM; Intertek
Width 30.00mm
