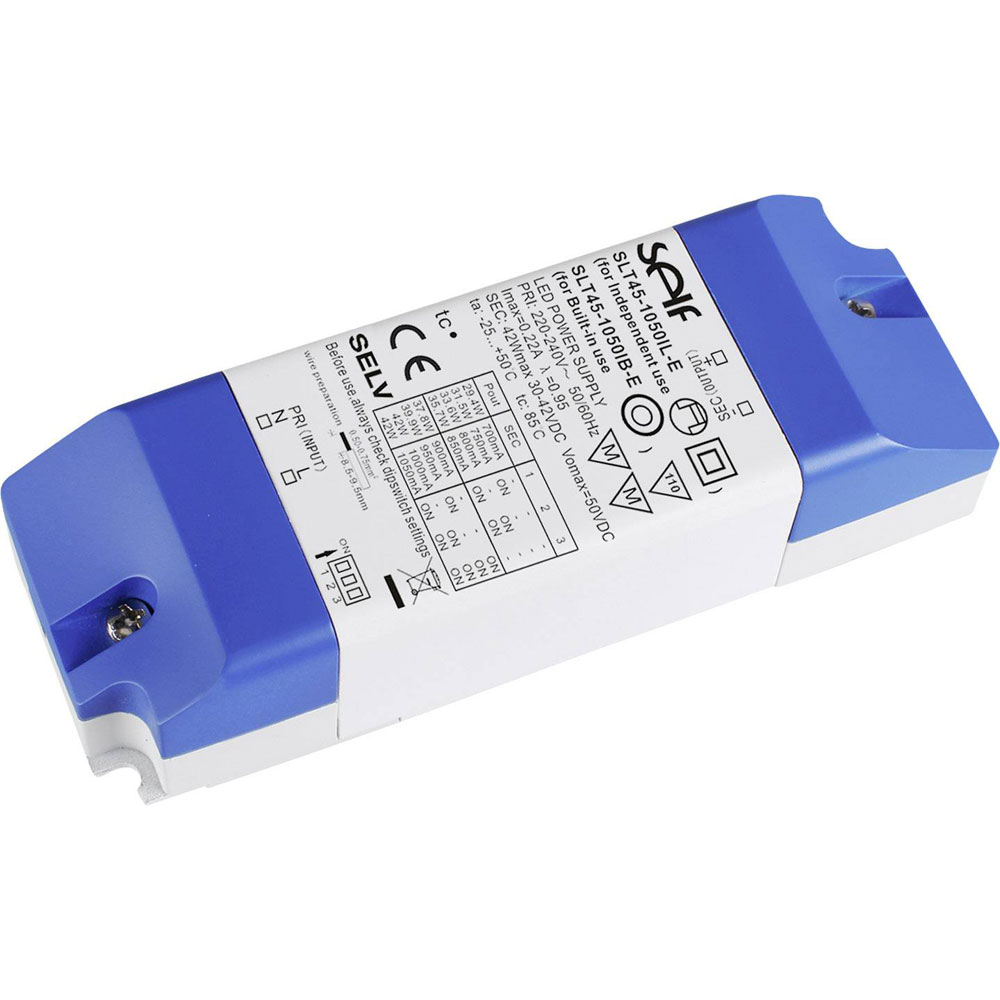

Self Electronics SLT45-1050IL-E LED Driver, 42W, 700-1050mA, Non-Dimmable.

Self Electronics
Order Code:

10-5703

Brand: Self Electronics MPN: SLT45-1050IL-E EAN-13: 4021087039246
Qty Unit Price (Ex VAT)
1+ £17.55
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
66 in stock, despatched in 4 working days

Self Electronics SLT45-1050IL-E LED driver delivers a constant current of 700 - 1050 mA and supports output voltages from 30.0 to 42.0 V DC, suitable for powering LED strips. It includes surge protection and is approved for use on furniture, though it is not dimmable. Typical applications include usage in lighting fixtures that require reliable and consistent power supply.
Type LED driver
Connection Screw terminal
Dim (L x W x H) 139.00 x 42.00 x 29.80 mm
Height 29.80mm
Input voltage (max.) 264V AC
IP rating IP20
Length 139.00mm
Max. output current 1050mA
Max. power 42W
Max. temperature 50°C
Min. input voltage 198V AC
Min. temperature -20°C
Misc Attribute 1 Constant current
Misc Attribute 2 Synchronised
No. of inputs 1
No. of outputs 1
Operating current 220mA
Operating voltage 230V AC
Output current (max.) - rounded 1.05A
Output current (min.) 700mA
Output voltage (max.) 42.0V DC
Output voltage (min.) 30.0V DC
Power (min.) 30W
Power range 30 up to 42 W
Test mark CE; SELV; MM; ENEC pending
Width 42.00mm
