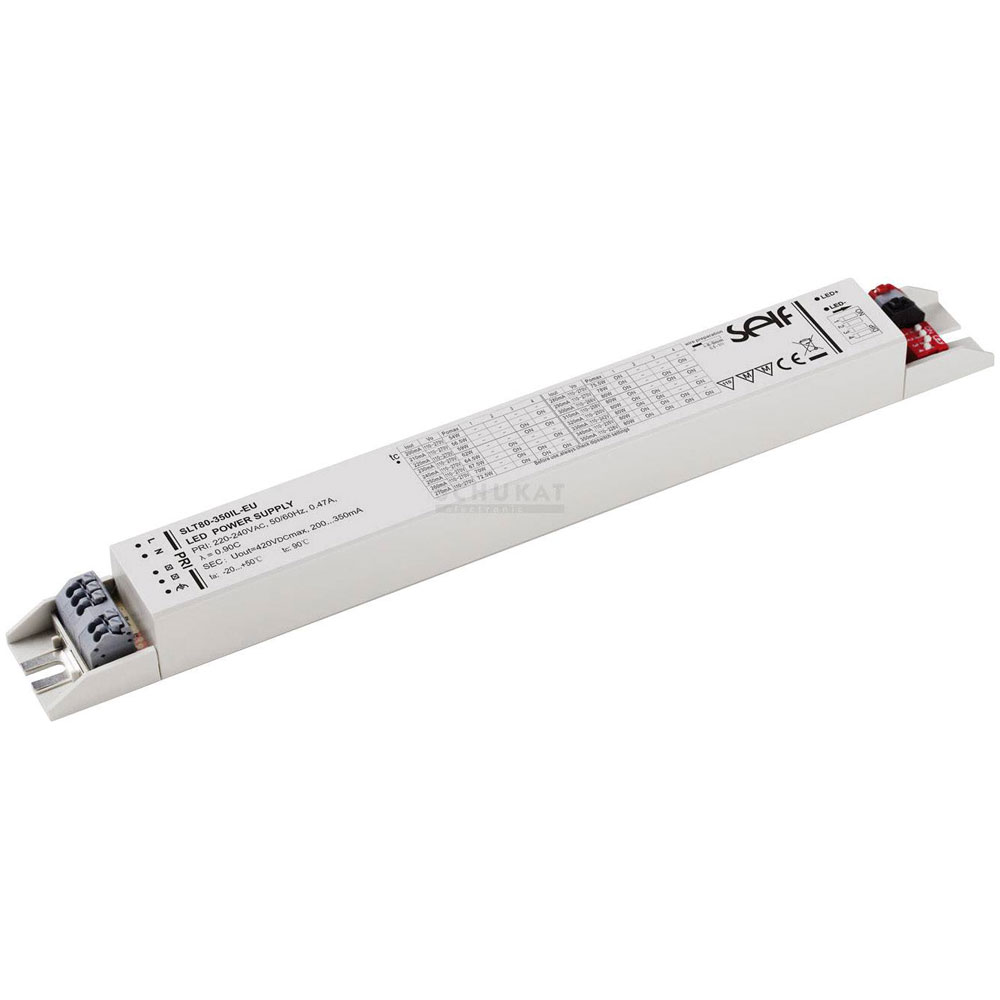

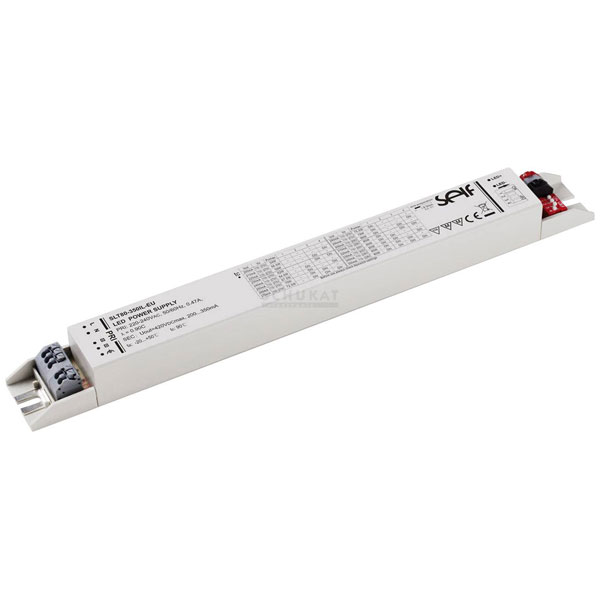

Self Electronics SLT80-350IL-EU LED Driver, 79.8W, 200-350mA, Surge Protected

Self Electronics
Order Code:

10-5724

Brand: Self Electronics MPN: SLT80-350IL-EU EAN-13: 4021087047913
Qty Unit Price (Ex VAT)
1+ £18.75
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
65 in stock, despatched in 4 working days

The Self Electronics SLT80-350IL-EU LED driver is a reliable power controller with constant current output of 200 - 350 mA and a power rating of 79.8 W. It features surge protection and overvoltage safety measures, suitable for powering LED strips effectively. This non-dimmable driver can be used in various lighting applications requiring stable DC outputs between 110 - 270 V.
Type LED driver
Connection Push-in connector
Dim (L x W x H) 280 x 30 x 22 mm
Factory colour Grey
Height 22mm
Input voltage (max.) 264V AC
IP rating IP20
Length 280mm
Max. output current 350mA
Max. power 79.8W
Max. temperature +50°C
Min. input voltage 198V AC
Min. temperature -20°C
Misc Attribute 1 Constant current
Misc Attribute 2 Pulsed
No. of inputs 1
No. of outputs 1
Operating voltage 230V AC
Output current (max.) - rounded 350mA
Output current (min.) 200mA
Output voltage (max.) 270V DC
Output voltage (min.) 110V DC
Power (min.) 22W
Power range 22 up to 79.8 W
Width 30mm
