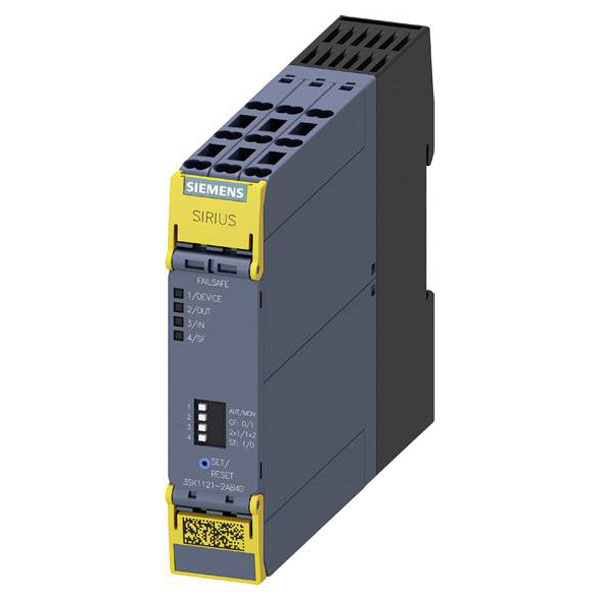

Siemens 3SK11212AB40 SIRIUS Safety relay 24V DC 3NO 1NC spring-loaded
Extended range
Order Code:
Brand:
Siemens
MPN: 3SK11212AB40 06-8918
- RoHS Compliant
- Country of Origin: Germany
- Free UK shipping available
- View Full Product Range (9)
| Qty | Unit Price (Ex VAT) |
|---|---|
| 1+ | £266.72 |
Price per unit Ex VAT
The Siemens 3SK1121-2AB40 is a circuit protection device designed for 24 V DC applications, ensuring reliable safety control. It features advanced protection technology, ideal for safeguarding electrical circuits from overloads and short circuits. Typically, this component is used in industrial automation systems and machinery to enhance operational safety.
| Type | Circuit protection |
|---|---|
| Depth | 121.6mm |
| Dim | (W x H x D) 22.5 x 100 x 121.6 mm |
| Evaluation inputs | One- and two-channel |
| Height | 100mm |
| Manufacturer part # | 3SK11212AB40 |
| Max. temperature | 60°C |
| Min. temperature | -25°C |
| Misc Attribute | 3SK1121-2AB40 |
| Model | Other |
| Nominal voltage | 24V DC |
| Number of outputs, safety related, delayed, with contact | 0 |
| Number of outputs, safety related, undelayed, with contact | 0 |
| Number of outputs, signalling function, delayed, with contact | 0 |
| Number of outputs, signalling function, undelayed, with contact | 0 |
| Performance level according to EN ISO 13849-1 | Level e |
| SIL according to IEC 61508 | 3 |
| Stop category according to IEC 60204 | 0 |
| Suitable for monitoring of emergency-stop circuits | TRUE |
| Suitable for monitoring of magnetic switches | TRUE |
| Suitable for monitoring of optoelectronic protection equipment | TRUE |
| Suitable for monitoring of position switches | TRUE |
| Suitable for rail mounting | FALSE |
| Type of electric connection | Spring clamp connection |
| Voltage type for actuating | DC |
| Width | 22.5mm |
| With approval according to UL | TRUE |
| With detachable clamps | FALSE |
| With feedback circuit | TRUE |
| With muting function | FALSE |
| With start input | TRUE |
