TruConnect 211853 5.0mm 6 Way Low Profile 90deg Rising Clamp Terminal Block
Standard range
Order Code:
Brand:
TruConnect
MPN: 211853 EAN-13: 5053556019571 21-1853
- RoHS Compliant
- Country of Origin: China
- Free UK shipping available
- View Full Product Range (8)
Quickly find another product in this range by No. of Ways:
| Qty | Unit Price (Ex VAT) |
|---|---|
| 1+ | £0.874 |
| 10+ | £0.676 |
| 50+ | £0.572 |
| 100+ | £0.495 |
| 250+ | £0.437 |
| 500+ | £0.391 |
Price per unit Ex VAT

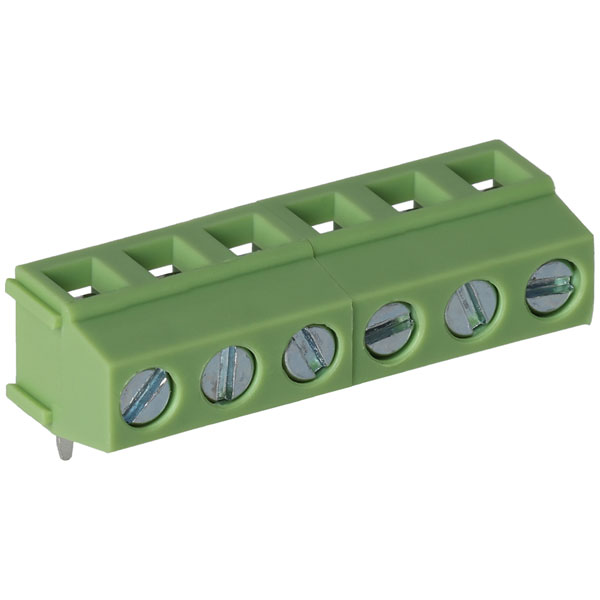

Low profile, horizontal mounting, moulded, rising clamp terminal block with 6 poles, 5mm pitch.
- Low profile design
- Interlocking (2-way and 3-way)
- Horizontal orientation
- Rising clamp
- Slotted screws
- 26 to14AWG (1.5mm²)
- Rated voltage: 300V
- Rated current: 12A
- Moulded housing in green flame retardant PA66
- Screws: M3, zinc plated steel
- Pin header: tin plated brass
- UL approved
| Colour | Green |
|---|---|
| Current Rating | 12A |
| Mounting Direction | Horizontal |
| Mounting Type | Through Hole |
| No. of Ways | 6 |
| Pitch | 5.0mm |
| Voltage Rating | 300V |
| Wire Gauge | 1.5mm² |
| Wire Gauge (AWG) | 26 to 14AWG |
| Wire Termination | Rising clamp |
