FESTO 19238 DSNU Round cylinder Aluminium 80mm stroke length
Standard range
Order Code:
Brand:
FESTO
MPN: 19238 03-2575
- RoHS Compliant
- Country of Origin: Germany
- Free UK shipping available
- View Full Product Range (32)
| Qty | Unit Price (Ex VAT) |
|---|---|
| 1+ | £51.57 |
Price per unit Ex VAT

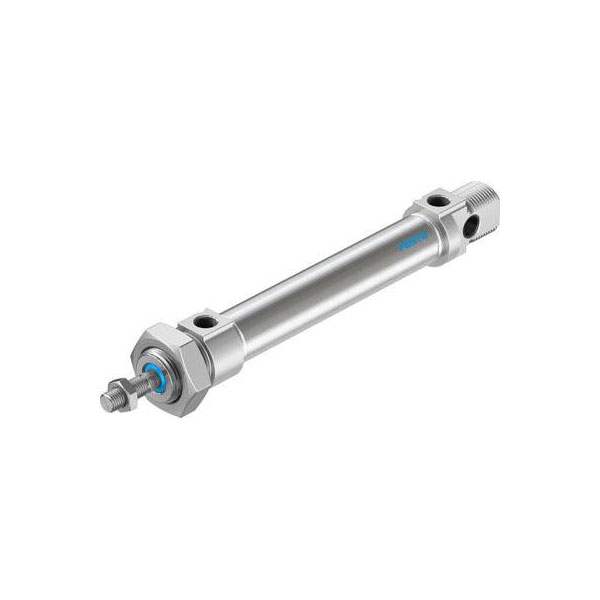

The FESTO 19238 DSNU-20-80-PPV-A is a round pneumatic cylinder with an aluminium wrought alloy enclosure and a stroke length of 80 mm. Designed for durability and efficient performance, it is suitable for a variety of automation tasks. Typical applications include industrial machinery and automated systems.
| Type | Round cylinder |
|---|---|
| Enclosure material | Aluminium wrought alloy |
| Force (max.) | 188.5N |
| Manufacturer part # | 19238 |
| Max. ambient temperature | +80°C |
| Max. operating pressure | 10bar |
| Min. ambient temperature | -20°C |
| Min. operating pressure | 1bar |
| Operating medium | According to ISO 8573-1:2010 compressed air [7:4:4] |
| Operating principle | Double-acting |
| Piston diameter | 20mm |
| Piston rod material | Steel |
| Piston rod thread | M8 |
| Pneumatics connector | G1/8" |
| Stroke length | 80mm |
| Weight | 186.8g |
