TruConnect 213993 5mm Low Profile 45 Degree 5 Way Terminal Block
Standard range
Order Code:
Brand:
TruConnect
MPN: 213993 EAN-13: 5053556021437 21-3993
- RoHS Compliant
- Country of Origin: China
- Free UK shipping available
- View Full Product Range (11)
Quickly find another product in this range by No. of Ways:
| Qty | Unit Price (Ex VAT) |
|---|---|
| 5+ | £0.885 |
| 10+ | £0.684 |
| 50+ | £0.579 |
| 100+ | £0.502 |
| 250+ | £0.443 |
| 500+ | £0.396 |
Price per unit Ex VAT
Order in multiples of 1

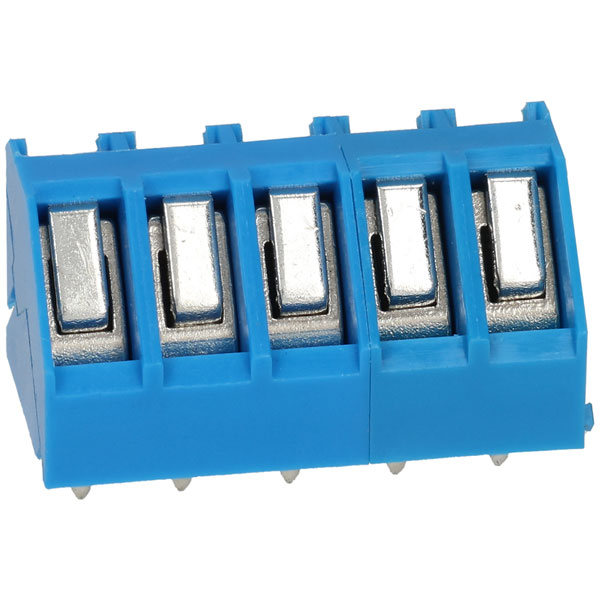

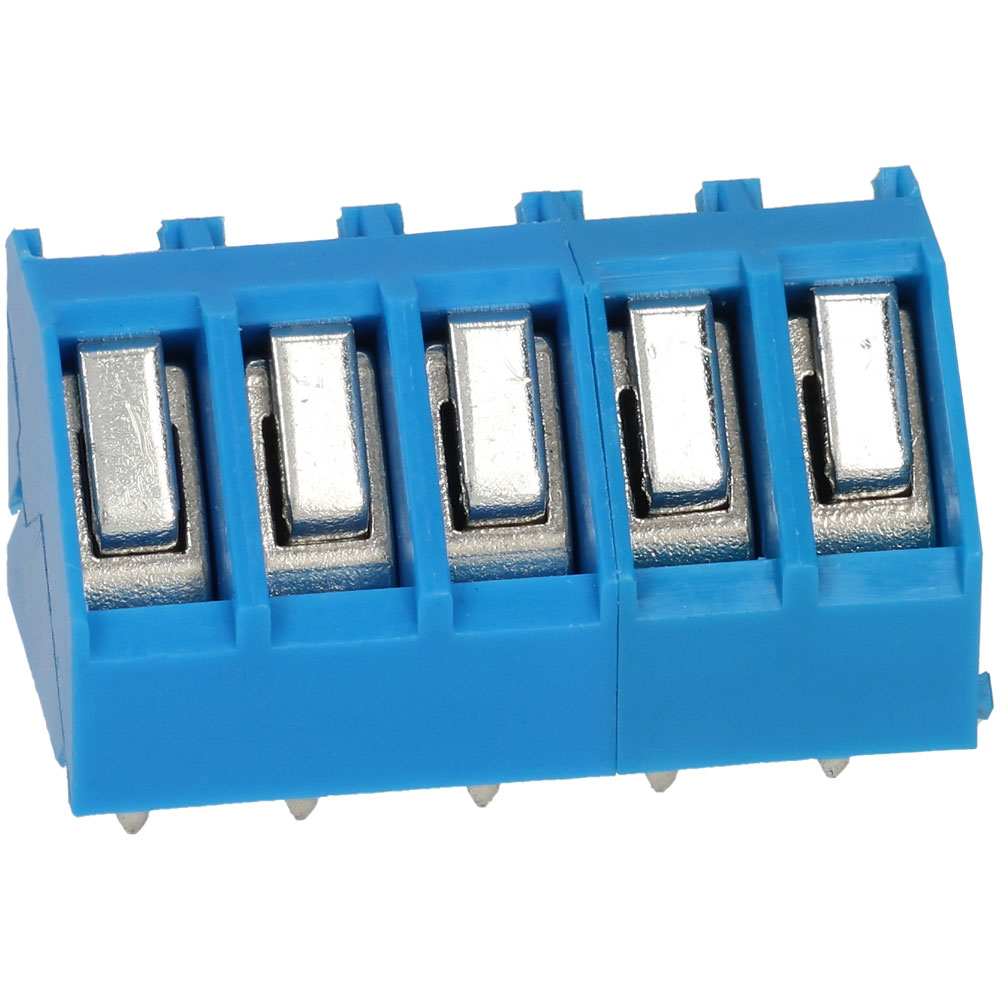

45 degree, low profile terminal block with 5 poles, 5mm pitch.
- Low profile design
- 45 degree orientation
- Interlocking (2-way and 3-way)
- Slotted screws
- 22 to 12AWG (2.5mm²)
- Rated voltage: 300V
- Rated current: 15A
- Moulded housing in blue flame retardant PA66
- Screws: M2.5, zinc plated steel
- Pin header: tin plated brass
- UL approved
| Colour | Blue |
|---|---|
| Current Rating | 15A |
| Mounting Direction | 45° |
| Mounting Type | Through Hole |
| No. of Ways | 5 |
| Pitch | 5mm |
| Voltage Rating | 300V |
| Wire Gauge | 2.5mm² |
| Wire Gauge (AWG) | 22 to 12AWG |
| Wire Termination | Screw |
