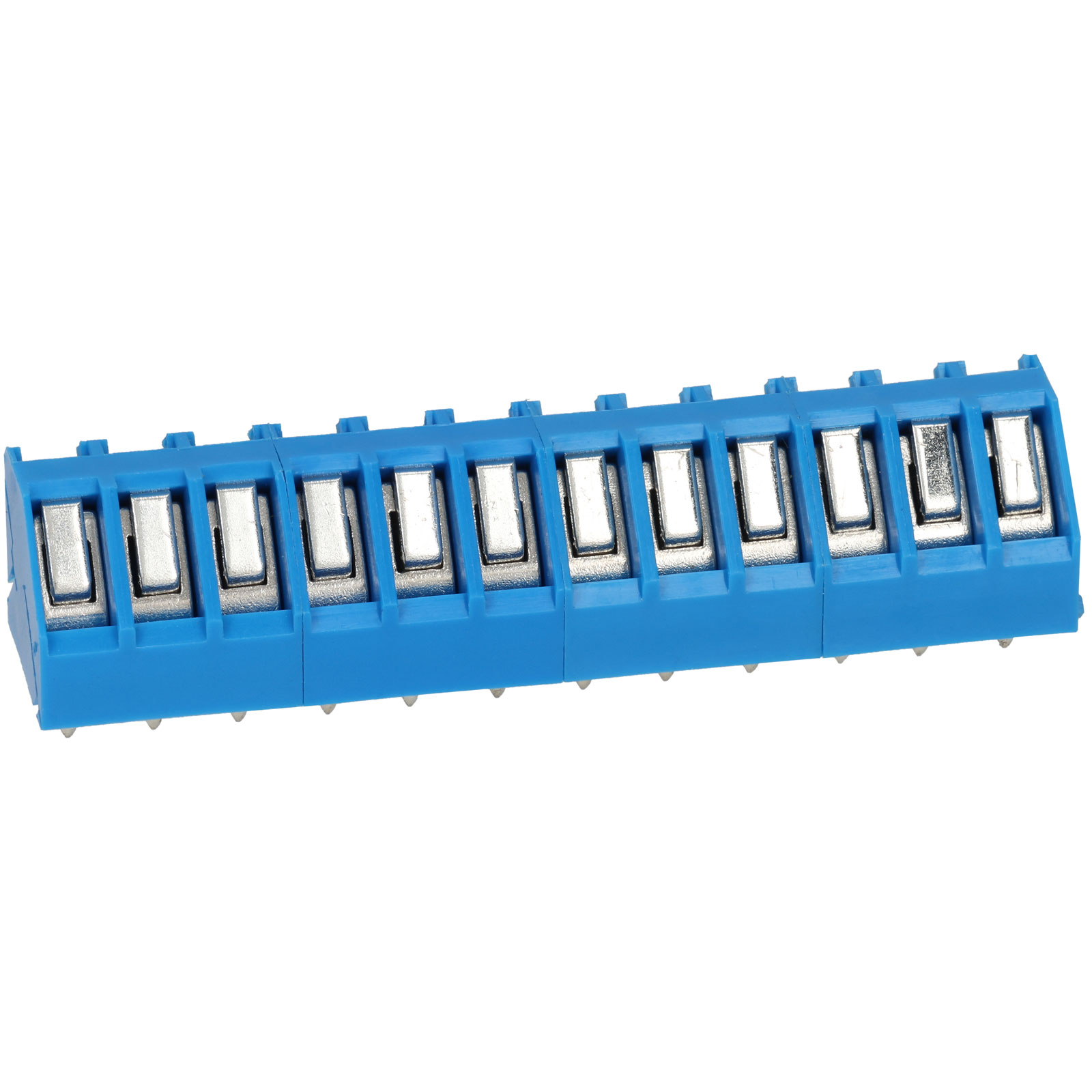

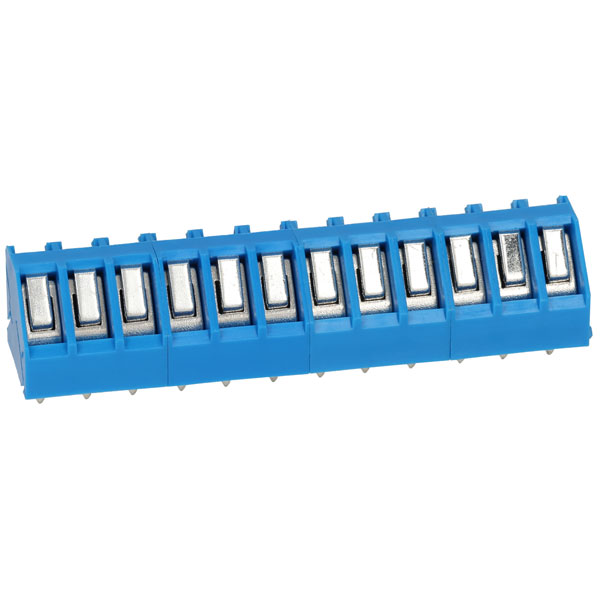

TruConnect 214168 5mm Low Profile 45 Degree 12 Way Terminal Block
Standard range
Order Code:
Brand:
TruConnect
MPN: 214168 EAN-13: 5053556021505 21-4168
- RoHS Compliant
- Country of Origin: China
- Free UK shipping available
- View Full Product Range (11)
Quickly find another product in this range by No. of Ways:
| Qty | Unit Price (Ex VAT) |
|---|---|
| 1+ | £2.13 |
| 10+ | £1.65 |
| 50+ | £1.39 |
| 100+ | £1.21 |
| 250+ | £1.07 |
| 500+ | £0.950 |
Price per unit Ex VAT
45 degree, low profile terminal block with 12 poles, 5mm pitch.
- Low profile design
- 45 degree orientation
- Interlocking (2-way and 3-way)
- Slotted screws
- 22 to 12AWG (2.5mm²)
- Rated voltage: 300V
- Rated current: 15A
- Moulded housing in blue flame retardant PA66
- Screws: M2.5, zinc plated steel
- Pin header: tin plated brass
- UL approved
| Colour | Blue |
|---|---|
| Current Rating | 15A |
| Mounting Direction | 45° |
| Mounting Type | Through Hole |
| No. of Ways | 12 |
| Pitch | 5mm |
| Voltage Rating | 300V |
| Wire Gauge | 2.5mm² |
| Wire Gauge (AWG) | 22 to 12AWG |
| Wire Termination | Screw |
