StandexMeder MK06-5-C Mini Reed Switch 200V 0.4A 10W THT Sensor
Standard range
Order Code:
Brand:
StandexMeder Electronics
MPN: 2206050002 EAN-13: 2050003801133 10-6871
- RoHS Compliant
- Country of Origin: Germany
- Free UK shipping available
- View Full Product Range (12)
| Qty | Unit Price (Ex VAT) |
|---|---|
| 1+ | £1.57 |
Price per unit Ex VAT

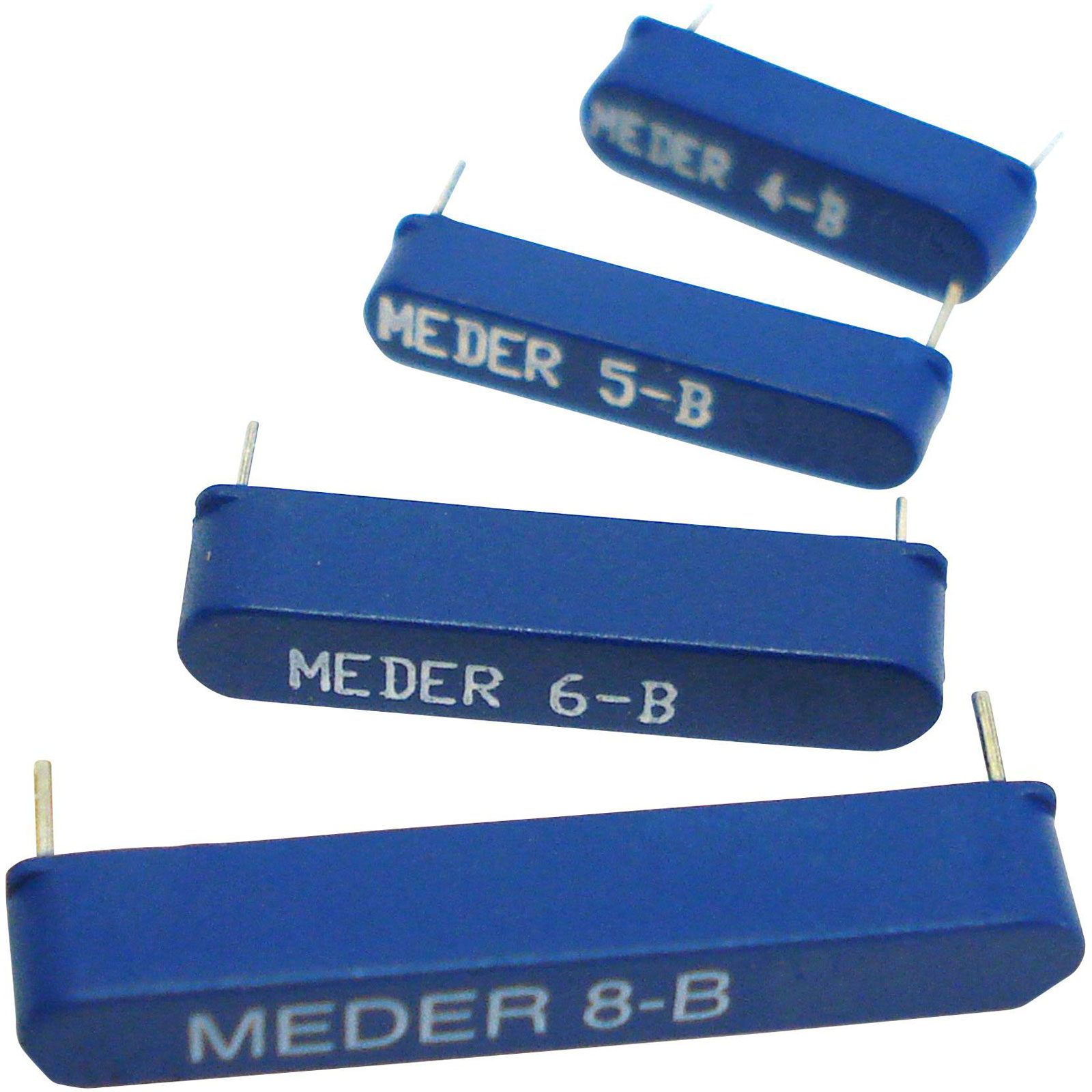

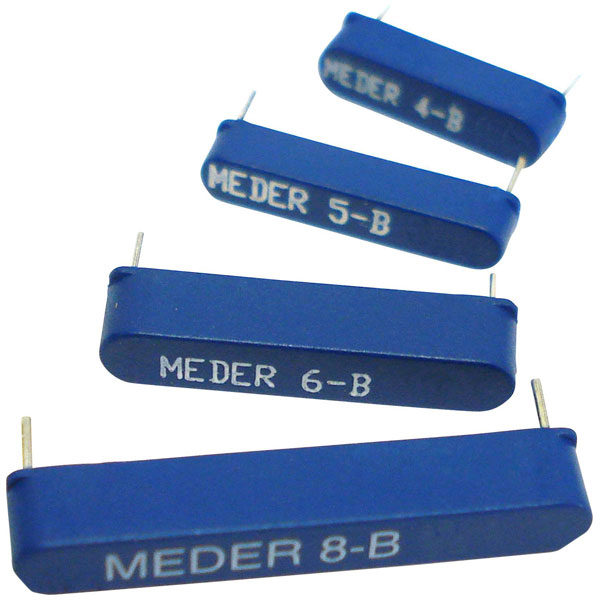

The StandexMeder Electronics MK06-5-C reed switch is designed for use with 200 V DC and 200 V AC, with a current handling of 0.4 A and a power rating of 10 W. It is a versatile component suitable for use in door contacts and various types of reed sensors. The switch is commonly used in applications requiring reliable and contactless switching in electrical circuits.
| Type | Reed switch |
|---|---|
| Connection | Solder pins |
| Contact type | 1 maker |
| Dim | (L x W x H) 14.3 x 2.8 x 3.2 mm |
| Height | 3.2mm |
| Length | 14.3mm |
| Max. switching capacity | 10W |
| Max. temperature | +85°C |
| Min. temperature | -20°C |
| Misc Attribute | MK06-5-C |
| Switching current (max.) | 0.4A |
| Water activity | 15 - 20 |
| Water activity (max.) | 20 |
| Water activity (min.) | 15 |
| Width | 2.8mm |
